Festo
8178633

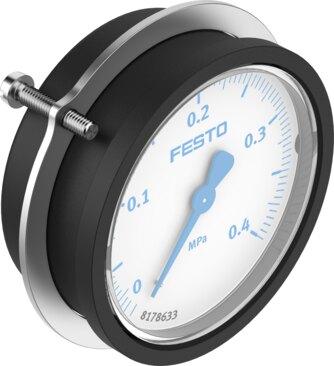

Flanged pressure gauge PAGN-P-63-0.4M-G14-1-CPA
The Festo 8178633 is a Bourdon tube pressure gauge featuring a nominal size of 63 and a display range of 0 MPa to 0.4 MPa (0 bar to 4 bar, 0 psi to 58 psi). Conforming to EN 837-3 and featuring CPA certification, this front panel mounting component utilizes a G1/4 rear-centered pneumatic connection with brass media-contacting materials for neutral liquids and inert gases, excluding acetylene and oxygen. It delivers measurement accuracy class 1 with an intermittent load factor of 0.66, providing IP43 protection, RoHS compliance, and VDMA24364-B1/B2-L LABS conformity across an operating medium temperature range of -20 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8178633
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8178633.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 MPa...0.4 MPa
- Conforms to standard
- EN 837-3
- Pressure gauge nominal size
- 63
- Certication
- CPA
- Structural design
- Bourdon tube pressure gauge
- Type of mounting
- Front panel mounting
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...0.4 MPa | 0 bar...4 bar | 0 psi...58 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 1
- Degree of protection
- IP43
- Storage temperature
- -40 °C...70 °C
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- G1/4
- Materials in contact with the media
- Brass
- Material of screwed plug
- Brass
- Housing material
- ABS
- Inspection window material
- SAN
- Fastening ring material
- Steel
- Material of screws
- Steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8178633. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
