Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

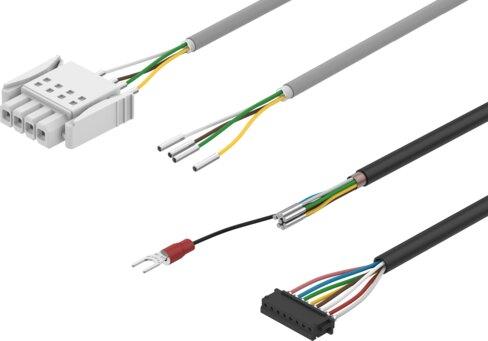

Reference imageConfirm configuration by manufacturer part number.
Festo
8178802
Connecting cable NEBM-L15G24-ES-3-LE24
This Festo industrial component, part number 8178802, weighs 210 g and operates at a nominal voltage of 24 V DC with a integrated shield. The assembly features a field device side connection with four straight ports utilizing a 24-pin connection pattern L15, mapped to a control side with four open-ended cables containing 24 occupied wires. Supplied with a 3 m energy chain-compatible cable spanning 3.3 mm to 4.6 mm in diameter, the unit supports a fixed bending radius of 23.1 mm and a flexible bending radius of 33 mm without label holders. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8178802
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8178802.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- Without label holder
- Product weight
- 210 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, connection type
- 4x port
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- Connection pattern L15
- Electrical connection 1, number of pins/wires
- 24
- Electrical connection 1, occupied pins/wires
- 24
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- 4x cables
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 24
- Electrical connection 2, occupied pins/wires
- 24
- Nominal operating voltage DC
- 24 V
- Shield
- Yes
- Cable length
- 3 m
- Cable characteristic
- Suitable for energy chains
- Bending radius, xed cable installation
- 23.1 mm
- Bending radius, exible cable installation
- 33 mm
- Cable diameter
- 3.3 mm...4.6 mm
- Cable design
- 2 x 4 x 0.25 mm² + 2 x 8 x 0.08 mm²
- Nominal conductor cross section
- 0.08 mm²...0.25 mm²
- Wire ends
- Wire ferrule
- Ambient temperature
- -30 °C...70 °C
- Ambient temperature with exible cable installation
- -5 °C...70 °C
- Storage temperature
- -30 °C...70 °C
- Relative air humidity
- 0 - 100%
- Nominal altitude of use above sea level
- <= 2000 m NHN
- CE marking (see declaration of conformity)
- As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC
- KC characters
- KC-EMV
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8178802. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
