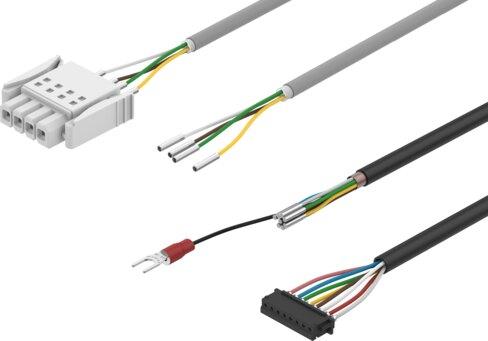

Reference imageConfirm configuration by manufacturer part number.
Festo
8178804
Connecting cable NEBM-L15G24-ES-10-LE24
This Festo industrial component, part number 8178804, weighs 1010 g and operates at a nominal voltage of 24 V DC. It features a shielded 10 m cable suitable for energy chains with a fixed bending radius of 23.1 mm, a flexible bending radius of 33 mm, and a diameter ranging from 3.3 mm to 4.6 mm, designed without a label holder. Electrical connection 1 on the field device side utilizes a 4x port with a straight cable outlet, L15 connection pattern, and 24 occupied pins out of 24, while electrical connection 2 on the control side consists of 4x cables with open ends and 24 occupied pins out of 24. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8178804
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8178804.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- Without label holder
- Product weight
- 1010 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, connection type
- 4x port
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- Connection pattern L15
- Electrical connection 1, number of pins/wires
- 24
- Electrical connection 1, occupied pins/wires
- 24
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- 4x cables
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 24
- Electrical connection 2, occupied pins/wires
- 24
- Nominal operating voltage DC
- 24 V
- Shield
- Yes
- Cable length
- 10 m
- Cable characteristic
- Suitable for energy chains
- Bending radius, xed cable installation
- 23.1 mm
- Bending radius, exible cable installation
- 33 mm
- Cable diameter
- 3.3 mm...4.6 mm
- Cable design
- 2 x 4 x 0.25 mm² + 2 x 8 x 0.08 mm²
- Nominal conductor cross section
- 0.08 mm²...0.25 mm²
- Wire ends
- Wire ferrule
- Ambient temperature
- -30 °C...70 °C
- Ambient temperature with exible cable installation
- -5 °C...70 °C
- Storage temperature
- -30 °C...70 °C
- Relative air humidity
- 0 - 100%
- Nominal altitude of use above sea level
- <= 2000 m NHN
- CE marking (see declaration of conformity)
- As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC
- KC characters
- KC-EMV
