Festo
8179434

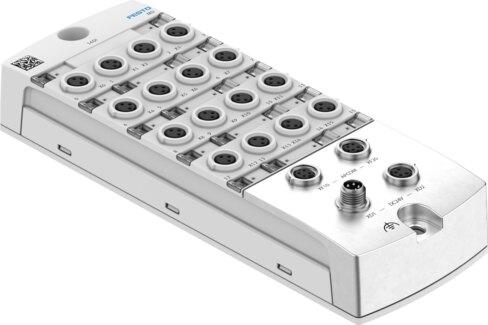

Digital input module CPX-AP-I-16DI-M8-3P
The Festo industrial component, part number 8179434, features dimensions of 60 mm x 170 mm x 35 mm and a product weight of 216 g with a PA, PC, and nickel-plated die-cast zinc housing. It provides IP65 and IP67 protection ratings when unused connections are sealed, operating within an ambient temperature range of -20 °C to 60 °C and supporting cable lengths up to 30 m for inputs and 50 m for system communication. This RoHS-compliant unit mounts via through-hole or on an H-rail using accessories and holds multiple certifications including c UL us - Listed (OL), RCM compliance, and CE and UKCA markings per EMC directives. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8179434
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8179434.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions W x L x H
- 60 mm x 170 mm x 35 mm
- Type of mounting
- On H-rail with accessories | With through-hole
- Product weight
- 216 g
- Ambient temperature
- -20 °C...60 °C
- Storage temperature
- -40 °C...70 °C
- Relative air humidity
- 5 - 95% | Non-condensating
- Degree of protection
- IP65 | IP67
- Note on degree of protection
- Unused connections sealed
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Max. cable length
- 30 m inputs | 50 m system communication
- Information on max. cable length
- Power supply according to nominal voltage
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- CE marking (see declaration of conformity)
- As per EU EMC directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC
- KC characters
- KC-EMV
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- Certicate issuing authority
- UL E239998
- Note on materials
- RoHS compliant
- Housing material
- PA | PC | Die-cast zinc, nickel-plated
- O-ring material
- FPM
- Diagnostics via LED
- Diagnostics per module | Status per channel
- Diagnose per internal communication
- Short circuit/overload in sensor supply | Electronics/sensors overvoltage | Electronics/sensors undervoltage
