Festo
8179439

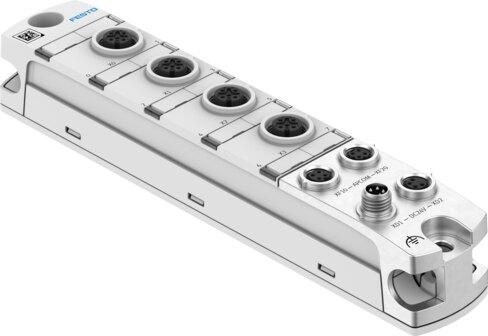

Digital output module CPX-AP-I-8DO-M12-5P
The Festo part number 8179439 is an industrial component measuring 30 mm x 170 mm x 35 mm with a product weight of 127 g, featuring a housing constructed from PA, PC, and nickel-plated die-cast zinc. It provides IP65 and IP67 degrees of protection when unused connections are sealed, supports a maximum cable length of 30 m for outputs and 50 m for system communication, and operates within an ambient temperature range of -20 °C to 60 °C. The unit holds CE, UKCA, KC-EMV, RCM, and c UL us - Listed (UL E239998) certifications while maintaining RoHS compliance, VDMA24364-B2-L LABS conformity, and a corrosion resistance class of CRC 1. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8179439
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8179439.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions W x L x H
- 30 mm x 170 mm x 35 mm
- Type of mounting
- On H-rail with accessories | With through-hole
- Product weight
- 127 g
- Ambient temperature
- -20 °C...60 °C
- Storage temperature
- -40 °C...70 °C
- Relative air humidity
- 5 - 95% | Non-condensating
- Degree of protection
- IP65 | IP67
- Note on degree of protection
- Unused connections sealed
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Max. cable length
- 30 m outputs | 50 m system communication
- Information on max. cable length
- Power supply according to nominal voltage
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- CE marking (see declaration of conformity)
- As per EU EMC directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC
- KC characters
- KC-EMV
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- Certicate issuing authority
- UL E239998
- Note on materials
- RoHS compliant
- Housing material
- PA | PC | Die-cast zinc, nickel-plated
- O-ring material
- FPM
- Diagnostics via LED
- Diagnostics per module | Load power supply | Status per channel
- Diagnose per internal communication
- Load switch-off | Short-circuit/overload in output signal | Electronics/sensors overvoltage
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8179439. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
