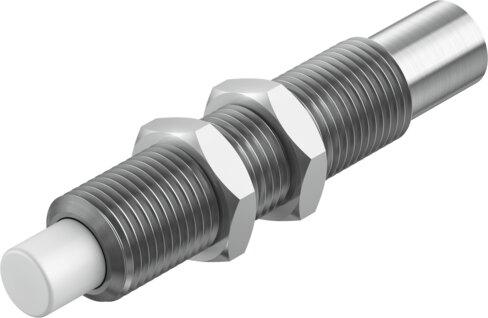

Reference imageConfirm configuration by manufacturer part number.
Festo
8179967
Shock absorber DYSS-5-5-Y1F-F1A
The Festo size 5 industrial component operates in a single-acting pushing mode with a 5 mm stroke and self-adjusting cushioning over a 5 mm cushioning length. It features a maximum stop force of 200 N, a maximum energy absorption of 1.4 J per stroke, a maximum impact velocity of 1 m/s, and a corrosion resistance class of 2 for moderate stress environments within an ambient temperature range of -10 °C to 80 °C. Exclusions apply to specific metals by mass as outlined in the manufacturer variants, while the unit remains suitable for battery production with reduced Cu/Zn/Ni values. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8179967
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8179967.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 5
- Stroke
- 5 mm
- Cushioning
- Self-adjusting
- Mounting position
- Any
- Position sensing
- None
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
- Max. impact velocity
- 1 m/s
- Reset time at room temperature
- 0.2 s
- Reset time at min. ambient temperature
- 1 s
- Mode of operation
- Pushing | Single-acting
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- -10 °C...80 °C
- Cushioning length
- 5 mm
- Max. stop force
- 200 N
- Max. tightening torque
- 2 Nm
- Max. energy absorption per stroke
- 1.4 J
- Max. energy absorption per hour
- 8000 J
- Max. residual energy
- 0.01 J
- Resetting force
- 0.9 N
- Min. insertion force
- 10 N
- Product weight
- 7 g
- Load range
- 2.5 kg
- Type of mounting
- With locknut
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8179967. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
