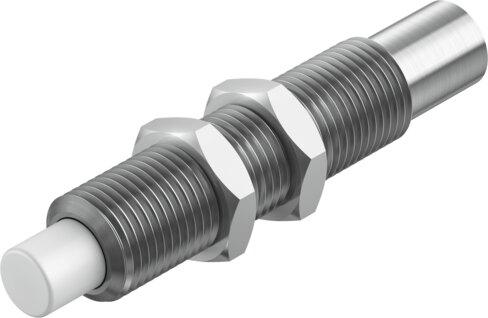

Reference imageConfirm configuration by manufacturer part number.
Festo
8179968
Shock absorber DYSS-7-5-Y1F-F1A
This Festo industrial component, part number 8179968, is a single-acting pushing unit featuring a size 7 format and a 5 mm stroke with self-adjusting cushioning. It accommodates any mounting position, operates within an ambient temperature range of -10 °C to 80 °C, and handles a maximum stop force of 300 N along with 2 J of energy absorption per stroke. The unit meets VDMA24364-B2-L LABS conformity with specific copper, zinc, and nickel exclusions while providing a maximum impact velocity of 1.5 m/s and moderate corrosion resistance class 2. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8179968
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8179968.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 7
- Stroke
- 5 mm
- Cushioning
- Self-adjusting
- Mounting position
- Any
- Position sensing
- None
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
- Max. impact velocity
- 1.5 m/s
- Reset time at room temperature
- 0.2 s
- Reset time at min. ambient temperature
- 1 s
- Mode of operation
- Pushing | Single-acting
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- -10 °C...80 °C
- Cushioning length
- 5 mm
- Max. stop force
- 300 N
- Max. tightening torque
- 3 Nm
- Max. energy absorption per stroke
- 2 J
- Max. energy absorption per hour
- 12000 J
- Max. residual energy
- 0.01 J
- Resetting force
- 1.2 N
- Min. insertion force
- 10 N
- Product weight
- 15 g
- Load range
- 5.5 kg
- Type of mounting
- With locknut
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- High-alloy steel
