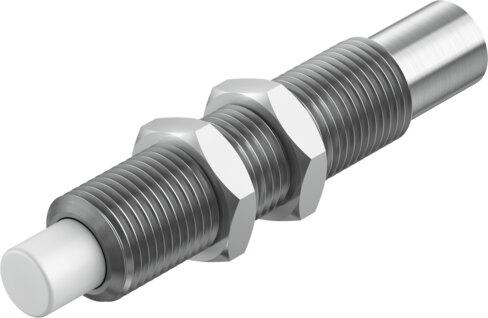

Name: Festo 8179969 Shock absorber DYSS-8-8-Y1F-F1A
Brand: Festo

Shock absorber DYSS-8-8-Y1F-F1A

The Festo part number 8179969 is a single-acting pushing industrial component featuring a size 8 specification, an 8 mm stroke, and self-adjusting cushioning over an 8 mm cushioning length. It operates within an ambient temperature range of -10 °C to 80 °C, supports any mounting position without position sensing, and accommodates a maximum impact velocity of 1.5 m/s with a maximum stop force of 500 N. This unit complies with VDMA24364-B2-L LABS conformity and CRC 2 moderate corrosion stress standards, while excluding certain copper, zinc, and nickel variants to remain suitable for specific Li-ion battery production environments. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8179969
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8179969.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 8
Stroke: 8 mm
Cushioning: Self-adjusting
Mounting position: Any
Position sensing: None
Variants: Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
Max. impact velocity: 1.5 m/s
Reset time at room temperature: 0.2 s
Reset time at min. ambient temperature: 1 s
Mode of operation: Pushing | Single-acting
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Ambient temperature: -10 °C...80 °C
Cushioning length: 8 mm
Max. stop force: 500 N
Max. tightening torque: 5 Nm
Max. energy absorption per stroke: 3 J
Max. energy absorption per hour: 18000 J
Max. residual energy: 0.002 J
Resetting force: 2.5 N
Min. insertion force: 18 N
Product weight: 10 g
Load range: 15 kg
Type of mounting: With locknut
Note on materials: RoHS compliant
Seals material: NBR
Housing material: High-alloy steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8179969. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
