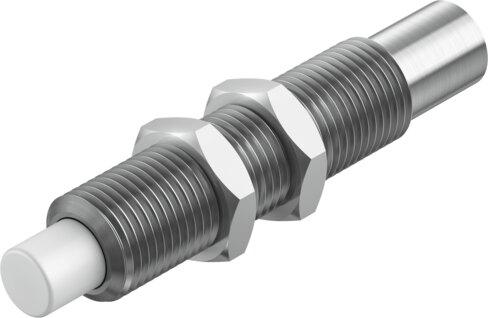

Reference imageConfirm configuration by manufacturer part number.
Festo
8179970
Shock absorber DYSS-10-10-Y1F-F1A
The Festo size 10 industrial component with part number 8179970 operates in a pushing, single-acting mode with a 10 mm stroke and self-adjusting cushioning. This unit handles a maximum impact velocity of 1.5 m/s, a maximum stop force of 700 N, and a maximum energy absorption of 6 J per stroke across an ambient temperature range of -10 °C to 80 °C. It features a moderate corrosion resistance class of CRC 2, adheres to VDMA24364-B2-L LABS conformity, and is suitable for battery production with reduced Cu/Zn/Ni values (F1a). Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8179970
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8179970.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 10
- Stroke
- 10 mm
- Cushioning
- Self-adjusting
- Mounting position
- Any
- Position sensing
- None
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
- Max. impact velocity
- 1.5 m/s
- Reset time at room temperature
- 0.2 s
- Reset time at min. ambient temperature
- 1 s
- Mode of operation
- Pushing | Single-acting
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- -10 °C...80 °C
- Cushioning length
- 10 mm
- Max. stop force
- 700 N
- Max. tightening torque
- 8 Nm
- Max. energy absorption per stroke
- 6 J
- Max. energy absorption per hour
- 25000 J
- Max. residual energy
- 0.03 J
- Resetting force
- 4 N
- Min. insertion force
- 24 N
- Product weight
- 51 g
- Load range
- 20 kg
- Type of mounting
- With locknut
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- High-alloy steel
