8180569

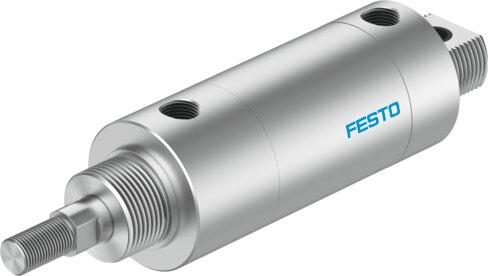

Name: Festo 8180569 Round cylinder DPRA-N-...-3"- -
Brand: Festo

Round cylinder DPRA-N-...-3"- -

The Festo 8180569 is a double-acting industrial component featuring a 3-inch piston diameter, 5/8-18 UNF-2A piston rod thread, and a stroke ranging from 0.0625 inches to 12 inches with a 1/4 NPT pneumatic connection. Operating on compressed air per ISO 8573-1:2010 [7:4:4] within a 9.99 psi to 150 psi pressure range, this unit incorporates elastic cushioning rings or pads at both ends and allows for position sensing via proximity switch in any mounting position. It exhibits a CRC 1 corrosion resistance class, operates in ambient temperatures from -40 °F to 300 °F, and weighs between 1.98 lb and 4.31 lb depending on the selected configuration. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8180569
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8180569.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 0.0625 in...12 in
Piston diameter: 3"
Piston rod thread: 5/8-18 UNF-2A
Cushioning: No cushioning | Elastic cushioning rings/pads at both ends
Mounting position: Any
Structural design: Piston | Piston rod | Cylinder barrel
Position sensing: Via proximity switch
Variants: End cap with swiveling rod eye and bearing sleeve | End cap with trunnion ange, rotated 90° | End cap with trunnion ange | Wiper made of NBR | Extended external thread piston rod | Extended piston rod | Bearing cap for direct mounting | Bearing cap with mounting thread | Bearing cap with trunnion ange | Axial supply port | Lateral supply port | With anti-twist protection | Through piston rod | Temperature range 0 to + 150°C | Temperature range -40 to 80°C | Piston rod at one end
Operating pressure: 9.99 psi...150 psi
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Ambient temperature: -40 °F...300 °F
Product weight: 1.98 lb...4.31 lb
Type of mounting: With accessories
Pneumatic connection: 1/4 NPT

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8180569. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
