Festo
8180683

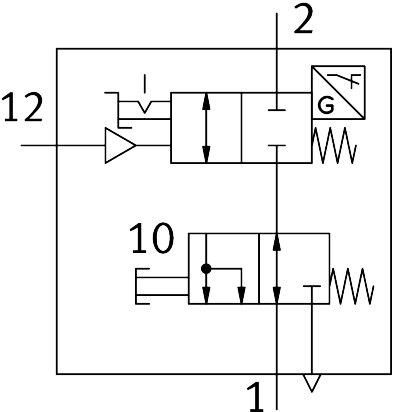

Shut-off valve VBOC-L2-S7-P-M8-G14-E
The Festo 8180683 is a pneumatic 2/2-way closed monostable industrial component featuring G1/4 connections and a mechanical spring reset method with detenting manual override. It delivers a nominal flow rate of 600 l/min and an operating pressure range of 0.05 MPa to 1 MPa using compressed air as per ISO 8573-1:2010 [7:4:4]. Built with welding spatter-resistant properties and a sealing ring on the screwed plug, this unit operates within an ambient temperature of -5 °C to 60 °C and includes manual exhaust functionality. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8180683
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8180683.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2/2-way, closed, monostable
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/4
- Actuation type
- Pneumatic
- Type of mounting
- Screw-in | With external thread
- Nominal ow rate standardized according to ISO 8778
- 600 l/min
- Standard ow rate 0.6->0 MPa (6->0 bar, 87->0 psi) to ISO 8778
- 1080 l/min
- Nominal ow rate 2->1 standardized according to ISO 8778
- 700 l/min
- Standard ow rate 0.6->0 MPa (6->0 bar, 87->0 psi) 2->1 to ISO 8778
- 1120 l/min
- Operating pressure
- 0.05 MPa...1 MPa | 0.5 bar...10 bar
- Ambient temperature
- -5 °C...60 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Mounting position
- Any
- Selection of additional function 2
- Manual exhaust
- Special features
- Welding spatter-resistant
- Type of seal on screwed plug
- Sealing ring
- Manual override
- Detenting
- Reset method
- Mechanical spring
- Pilot air supply port
- External
- Manual exhaust function
- Non-detenting
- Measuring principle
- Inductive
- Switching element function
- NC contact
- Rotatability
- 360 deg/continuous swiveling not permissible
- Sensor reverse polarity protection
- For all electrical connections
