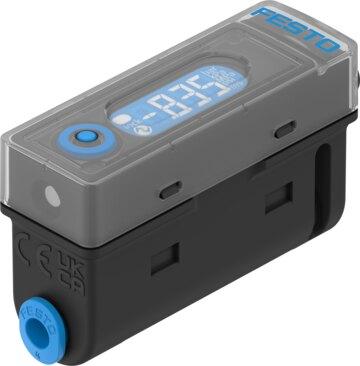

Reference imageConfirm configuration by manufacturer part number.
Festo
8181221
Pressure sensor SPAF-V1R-Q4-L-PNLK-VB-M8
The Festo 8181221 is an industrial piezoresistive pressure sensor designed to measure relative pressure from 0 to -0.1 MPa (0 to -1 bar, 0 to -14.5 psi) with an overload pressure rating of 0.5 MPa (5 bar, 72.5 psi). This component features a switchable PNP/NPN switching output, configurable switching functions including window and threshold comparators, and a 3 ms on time for compressed air or inert gas media within a 0 °C to 50 °C operating temperature range. It complies with RCM, CE EMC and RoHS directives, UKCA EMC and RoHS instructions, and maintains a full scale accuracy of 1.5 %FS with a 0.3 %FS repetition accuracy. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8181221
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8181221.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Relative pressure
- Method of measurement
- Piezoresistive pressure sensor
- Pressure measuring range initial value
- 0 MPa | 0 bar | 0 psi
- Pressure measuring range end value
- -0.1 MPa | -1 bar | -14.5 psi
- Overload pressure
- 0.5 MPa | 5 bar | 72.5 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Ester oil < 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2] | Lubricated operation possible
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Accuracy in ± % FS
- 1.5 %FS
- Repetition accuracy in ± %FS
- 0.3 %FS
- Temperature co-efficient in ± %FS/K
- 0.05 %FS/K
- Switching output
- PNP/NPN switchable
- Switching function
- Window comparator | Threshold value comparator | Threshold value with variable hysteresis
- Switching element function
- N/C contact/N/O contact, switchable
- On time
- 3 ms
- Switch-off time
- 3 ms
- Max. output current
- 100 mA
- Voltage drop
- 1.6 V
