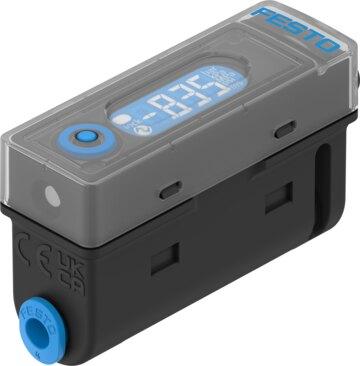

Name: Festo 8181222 Pressure sensor SPAF-P10R-Q4-L-PNLK-VB-M8
Brand: Festo

Pressure sensor SPAF-P10R-Q4-L-PNLK-VB-M8

The Festo 8181222 is an industrial component utilizing a piezoresistive pressure sensor to measure relative pressure within a range of 0 to 1 MPa (0 to 10 bar or 0 to 145 psi). This unit features a switchable PNP/NPN switching output with a 3 ms on time, supporting threshold value comparator, window comparator, and variable hysteresis switching functions. It operates with compressed air according to ISO 8573-1:2010 [7:4:4] or inert gases at medium and ambient temperatures ranging from 0 °C to 50 °C. The device carries RCM, CE, and UKCA compliance marks and is RoHS compliant. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8181222
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8181222.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: RCM compliance mark
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Note on materials: RoHS compliant
Measured variable: Relative pressure
Method of measurement: Piezoresistive pressure sensor
Pressure measuring range initial value: 0 MPa | 0 bar | 0 psi
Pressure measuring range end value: 1 MPa | 10 bar | 145 psi
Overload pressure: 1.5 MPa | 15 bar | 217.5 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
Information on operating and pilot media: Ester oil < 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2] | Lubricated operation possible
Temperature of medium: 0 °C...50 °C
Ambient temperature: 0 °C...50 °C
Accuracy in ± % FS: 1.5 %FS
Repetition accuracy in ± %FS: 0.3 %FS
Temperature co-eﬃcient in ± %FS/K: 0.05 %FS/K
Switching output: PNP/NPN switchable
Switching function: Window comparator | Threshold value comparator | Threshold value with variable hysteresis
Switching element function: N/C contact/N/O contact, switchable
On time: 3 ms
Switch-oﬀ time: 3 ms
Max. output current: 100 mA
Voltage drop: 1.6 V
