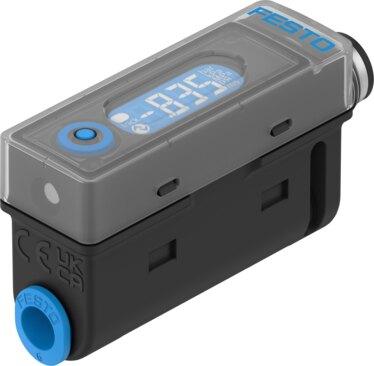

Reference imageConfirm configuration by manufacturer part number.
Festo
8181234
Pressure sensor SPAF-P10R-Q6-L-PNLK-VB-M12
The Festo 8181234 is an industrial component utilizing a piezoresistive pressure sensor to measure relative pressure across a range of 0 to 1 MPa (0 to 10 bar or 0 to 145 psi) with a 1.5 %FS accuracy and 0.3 %FS repetition accuracy. This device operates with compressed air as per ISO 8573-1:2010 [7:4:4] or inert gases within a medium and ambient temperature range of 0 °C to 50 °C, featuring a switchable PNP/NPN switching output with a 3 ms on time. It includes RCM compliance, CE marking per EU EMC and RoHS directives, and UKCA marking to UK instructions for EMC and RoHS. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8181234
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8181234.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Relative pressure
- Method of measurement
- Piezoresistive pressure sensor
- Pressure measuring range initial value
- 0 MPa | 0 bar | 0 psi
- Pressure measuring range end value
- 1 MPa | 10 bar | 145 psi
- Overload pressure
- 1.5 MPa | 15 bar | 217.5 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Ester oil < 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2] | Lubricated operation possible
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Accuracy in ± % FS
- 1.5 %FS
- Repetition accuracy in ± %FS
- 0.3 %FS
- Temperature co-efficient in ± %FS/K
- 0.05 %FS/K
- Switching output
- PNP/NPN switchable
- Switching function
- Window comparator | Threshold value comparator | Threshold value with variable hysteresis
- Switching element function
- N/C contact/N/O contact, switchable
- On time
- 3 ms
- Switch-off time
- 3 ms
- Max. output current
- 100 mA
- Voltage drop
- 1.6 V
