8181243

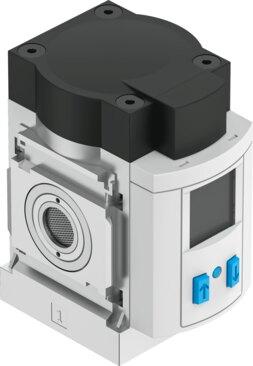

Name: Festo 8181243 Flow sensor SFAM-62-5000L-M-PNLK-PNVBA-M12
Brand: Festo

Flow sensor SFAM-62-5000L-M-PNLK-PNVBA-M12

The Festo part number 8181243 is an industrial component supporting unidirectional flow from left to right for compressed air as per ISO 8573-1:2010 [7:4:4], argon, carbon dioxide, and nitrogen. It features a pressure measuring range of 0 to 1.6 MPa (0 to 16 bar, 0 to 232 psi), a flow measuring range of 50 to 5000 l/min, and a temperature measuring range of 0 °C to 100 °C, operating at an ambient and medium temperature range of 0 °C to 50 °C with a nominal temperature of 23 °C. The unit maintains a pressure accuracy of 1.5 %FS, a flow rate accuracy of ±(3% o.m.v. + 0.3% FS), and a temperature accuracy of 5 °C, alongside an operating pressure of 1.6 MPa (16 bar, 232 psi) and an overload pressure of 2 MPa (20 bar, 290 psi). Certified with RCM, CE marking as per EU EMC and RoHS directives, and UKCA marking to UK instructions for EMC and RoHS, the device is RoHS compliant. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8181243
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8181243.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: RCM compliance mark
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Note on materials: RoHS compliant
Flow direction: Unidirectional | From left to right
Pressure measuring range initial value: 0 MPa | 0 bar | 0 psi
Pressure measuring range end value: 1.6 MPa | 16 bar | 232 psi
Flow measuring range start value: 50 l/min
Flow measuring range end value: 5000 l/min
Temperature measuring range start value: 0 °C
Temperature measuring range end value: 100 °C
Operating pressure: 1.6 MPa | 16 bar | 232 psi
Overload pressure: 2 MPa | 20 bar | 290 psi
Operating medium: Argon | Compressed air as per ISO 8573-1:2010 [7:4:4] | Carbon dioxide | Nitrogen
Temperature of medium: 0 °C...50 °C
Ambient temperature: 0 °C...50 °C
Nominal temperature: 23 °C
Accuracy of pressure value in ± %FS: 1.5 %FS
Accuracy of ow rate: ±(3% o.m.v. + 0.3% FS)
Accuracy of temperature in ± °C: 5 °C
Repetition accuracy of pressure value in ± %FS: 0.3 %FS

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8181243. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
