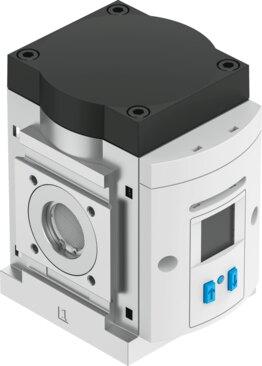

Reference imageConfirm configuration by manufacturer part number.
Festo
8181250
Flow sensor SFAM-90-5000L-TG1-PNLK-PNVBA-M12
The Festo part number 8181250 is an industrial component supporting unidirectional flow from left to right with an operating pressure of 1.6 MPa, 16 bar, or 232 psi and an overload pressure up to 2 MPa, 20 bar, or 290 psi. It features a pressure measuring range from 0 to 1.6 MPa (0 to 16 bar, 0 to 232 psi) with 1.5 %FS accuracy, a flow measuring range of 50 to 5000 l/min with an accuracy of ±(3% o.m.v. + 0.3% FS), and a temperature measuring range of 0 °C to 100 °C with 5 °C accuracy at a nominal temperature of 23 °C. Operating with compressed air as per ISO 8573-1:2010 [7:4:4], argon, carbon dioxide, or nitrogen, the unit functions within medium and ambient temperatures of 0 °C to 50 °C while maintaining RoHS compliance, RCM compliance, CE marking per EU EMC and RoHS directives, and UKCA marking to UK EMC and RoHS instructions. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8181250
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8181250.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Flow direction
- Unidirectional | From left to right
- Pressure measuring range initial value
- 0 MPa | 0 bar | 0 psi
- Pressure measuring range end value
- 1.6 MPa | 16 bar | 232 psi
- Flow measuring range start value
- 50 l/min
- Flow measuring range end value
- 5000 l/min
- Temperature measuring range start value
- 0 °C
- Temperature measuring range end value
- 100 °C
- Operating pressure
- 1.6 MPa | 16 bar | 232 psi
- Overload pressure
- 2 MPa | 20 bar | 290 psi
- Operating medium
- Argon | Compressed air as per ISO 8573-1:2010 [7:4:4] | Carbon dioxide | Nitrogen
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Nominal temperature
- 23 °C
- Accuracy of pressure value in ± %FS
- 1.5 %FS
- Accuracy of ow rate
- ±(3% o.m.v. + 0.3% FS)
- Accuracy of temperature in ± °C
- 5 °C
- Repetition accuracy of pressure value in ± %FS
- 0.3 %FS
