8181283

Name: Festo 8181283 Shut-off valve VBOC-L2-S7-P-M8-G12-E
Brand: Festo

Shut-off valve VBOC-L2-S7-P-M8-G12-E

The Festo part number 8181283 is a 2/2-way closed, monostable industrial component featuring G1/2 pneumatic connections for both port 1 and port 2 and a screw-in external thread mounting design. This pneumatically actuated valve operates within a pressure range of 0.05 MPa to 1 MPa and handles compressed air conforming to ISO 8573-1:2010 [7:4:4] across an ambient temperature range of -5 °C to 60 °C. It includes a manual exhaust function, detenting manual override, mechanical spring reset, and a sealing ring on the screwed plug while offering welding spatter-resistant properties and compliance with EU and UK EMC and RoHS directives. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8181283
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8181283.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

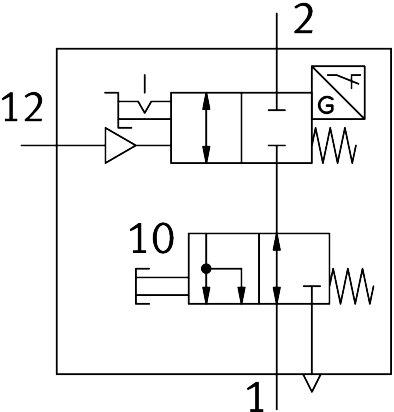

Valve function: 2/2-way, closed, monostable
Pneumatic connection 1: G1/2
Pneumatic connection 2: G1/2
Actuation type: Pneumatic
Type of mounting: Screw-in | With external thread
Nominal ow rate standardized according to ISO 8778: 1470 l/min
Standard ow rate 0.6->0 MPa (6->0 bar, 87->0 psi) to ISO 8778: 2560 l/min
Nominal ow rate 2->1 standardized according to ISO 8778: 1560 l/min
Standard ow rate 0.6->0 MPa (6->0 bar, 87->0 psi) 2->1 to ISO 8778: 2580 l/min
Operating pressure: 0.05 MPa...1 MPa | 0.5 bar...10 bar
Ambient temperature: -5 °C...60 °C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Mounting position: Any
Selection of additional function 2: Manual exhaust
Special features: Welding spatter-resistant
Type of seal on screwed plug: Sealing ring
Manual override: Detenting
Reset method: Mechanical spring
Pilot air supply port: External
Manual exhaust function: Non-detenting
Measuring principle: Inductive
Switching element function: NC contact
Rotatability: 360 deg/continuous swiveling not permissible
Sensor reverse polarity protection: For all electrical connections
