Festo
8181663

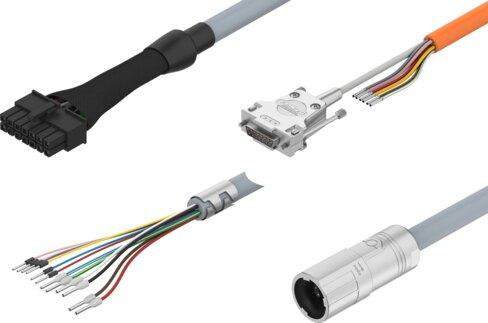

Motor cable NEBM-LX/M17-
This industrial component from Festo adheres to the EN 61984 norm and features a product weight ranging from 365 g to 1880 g without a label holder on the cable designation. The unit operates within a DC operating voltage range of 0 V to 48 V, utilizing a field device side with a 12-pin or 14-pin hybrid socket design alongside a control side socket or cable connection. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8181663
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8181663.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61984
- Cable designation
- Without label holder
- Product weight
- 365 g...1880 g
- Electrical connection
- 12-pin | 14-pin
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square | Round
- Electrical connection 1, connection type
- Hybrid socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- Connection pattern L10 | Connection pattern L5 | M17x0.75
- Electrical connection 1, number of pins/wires
- 12 | 14
- Electrical connection 1, occupied pins/wires
- 12 | 13
- Electrical connection 1, type of mounting
- Snap-locking | Screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Socket | Cable
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- Connection pattern L10 | Connection pattern L5 | M17x0.75 | Open end
- Electrical connection 2, number of pins/wires
- 12 | 14
- Electrical connection 2, occupied pins/wires
- 12 | 13
- Electrical connection 2, type of mounting
- Snap-locking | Screw-type lock | Inserted
- DC operating voltage range
- 0 V...48 V
- Current rating at 40° C
- 7.6 A...17.8 A
