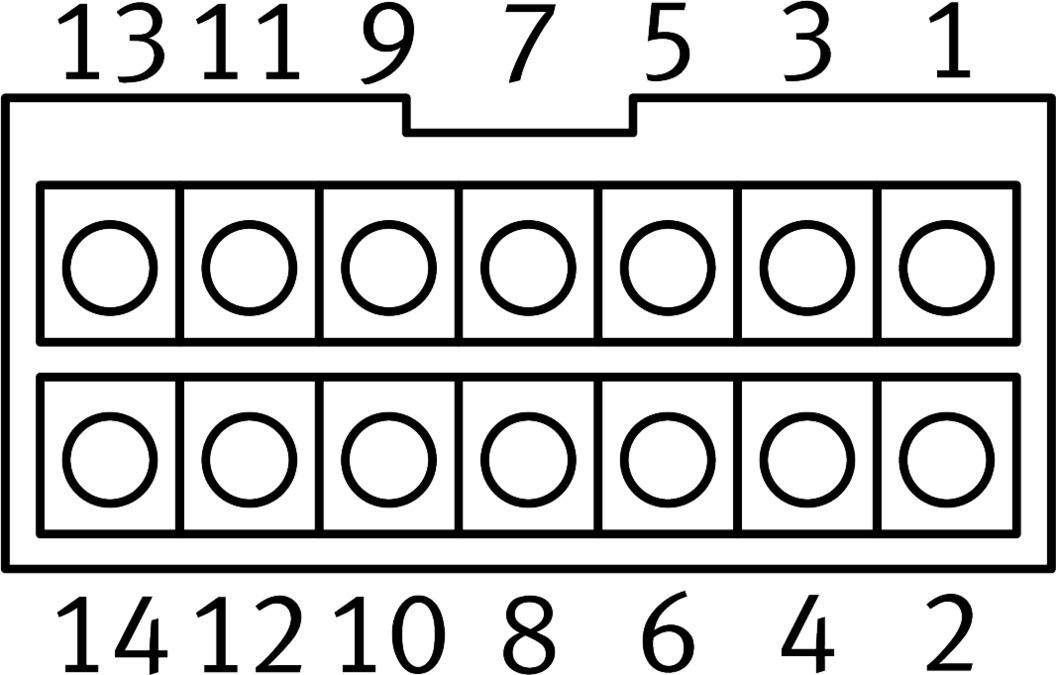

Reference imageConfirm configuration by manufacturer part number.
Festo
8181666
Motor cable NEBM-L10G14-EH-2.5-Q7N-LE12
This Festo industrial component, part number 8181666, features a square hybrid socket on the field device side with 14 pins, 13 occupied pins, connection pattern L10, a straight cable outlet, and snap-locking mounting based on the EN 61984 norm. The control side utilizes a straight cable connection with 12 open-ended pins, all of which are occupied, featuring an inserted mounting type and weighing 400 g in total. Operating within a 0 V to 48 V DC voltage range, the unit delivers a current rating of 11.7 A at 40°C and comes without a label holder on the cable designation. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8181666
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8181666.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61984
- Cable designation
- Without label holder
- Product weight
- 400 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Hybrid socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- Connection pattern L10
- Electrical connection 1, number of pins/wires
- 14
- Electrical connection 1, occupied pins/wires
- 13
- Electrical connection 1, type of mounting
- Snap-locking
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 12
- Electrical connection 2, occupied pins/wires
- 12
- Electrical connection 2, type of mounting
- Inserted
- DC operating voltage range
- 0 V...48 V
- Current rating at 40° C
- 11.7 A
- Surge resistance
- 1.5 kV
- Shield
- Yes
- Cable length
- 2.5 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 42 mm
- Bending radius, exible cable installation
- 78.75 mm
- Cable diameter
- 10.5 mm
- Cable diameter tolerance
- ± 0.3 mm
- Cable design
- 4 x 0.75 mm² + 2 x 0.5 mm² + 6 x 0.15 mm²
- Nominal conductor cross section
- 0.15 mm² | 0.5 mm²
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8181666. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
