Name: Festo 8181673 Motor cable NEBM-L10G14-EH-10-Q7N-LE12
Brand: Festo

Motor cable NEBM-L10G14-EH-10-Q7N-LE12

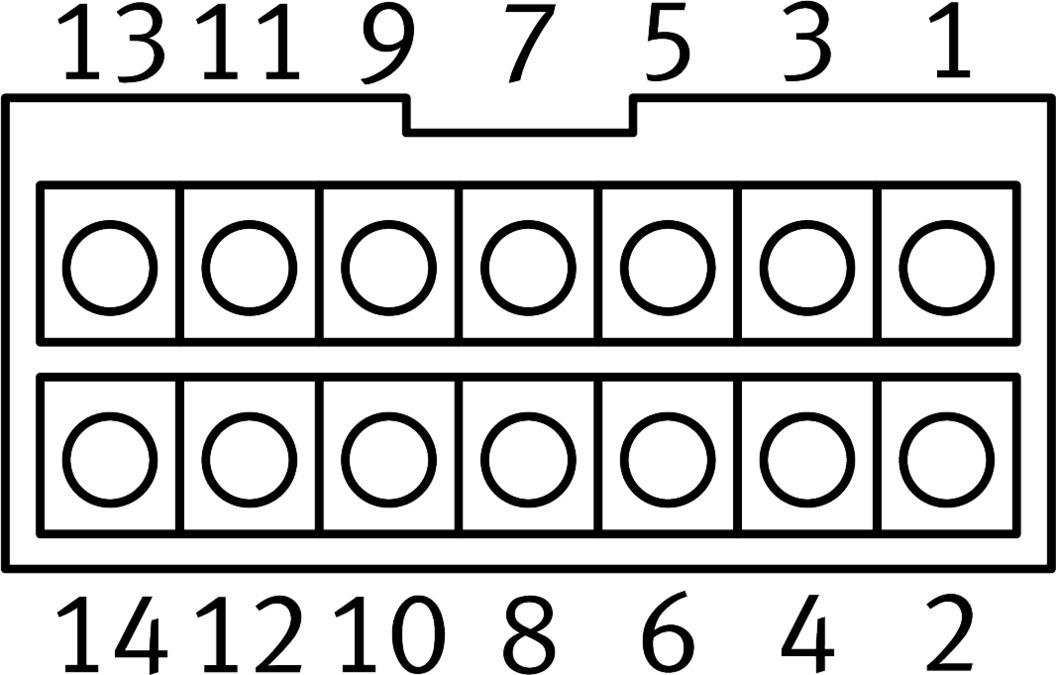

Manufactured by Festo and compliant with EN 61984, this industrial component (part number 8181673) features a product weight of 1600 g and operates within a DC voltage range of 0 V to 48 V with a current rating of 11.7 A at 40° C. Electrical connection 1 on the field device side utilizes a straight, hybrid square socket with connection technology L10, 14 pins (13 occupied), snap-locking mounting, and no label holder, while electrical connection 2 on the control side consists of a straight cable with 12 open ends and 12 occupied pins. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8181673
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8181673.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Based on norm: EN 61984
Cable designation: Without label holder
Product weight: 1600 g
Electrical connection 1, function: Field device side
Electrical connection 1, design: Square
Electrical connection 1, connection type: Hybrid socket
Electrical connection 1, cable outlet: Straight
Electrical connection 1, connection technology: Connection pattern L10
Electrical connection 1, number of pins/wires: 14
Electrical connection 1, occupied pins/wires: 13
Electrical connection 1, type of mounting: Snap-locking
Electrical connection 2, function: Control side
Electrical connection 2, connection type: Cable
Electrical connection 2, cable outlet: Straight
Electrical connection 2, connection technology: Open end
Electrical connection 2, number of pins/wires: 12
Electrical connection 2, occupied pins/wires: 12
Electrical connection 2, type of mounting: Inserted
DC operating voltage range: 0 V...48 V
Current rating at 40° C: 11.7 A
Surge resistance: 1.5 kV
Shield: Yes
Cable length: 10 m
Cable characteristic: Suitable for energy chains
Connector cable test conditions: Test conditions on request
Bending radius, xed cable installation: 42 mm
Bending radius, exible cable installation: 78.75 mm
Cable diameter: 10.5 mm
Cable diameter tolerance: ± 0.3 mm
Cable design: 4 x 0.75 mm² + 2 x 0.5 mm² + 6 x 0.15 mm²
Nominal conductor cross section: 0.15 mm² | 0.5 mm²
