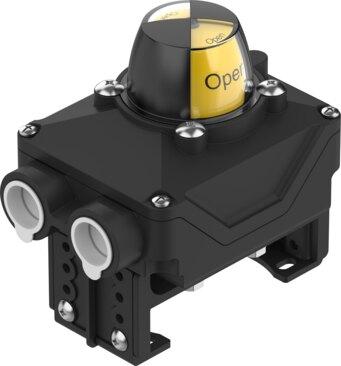

Name: Festo 8182177 Limit switch box SRBK-CA4-YR90-MW-22A-1W-C2
Brand: Festo

Limit switch box SRBK-CA4-YR90-MW-22A-1W-C2

This Festo industrial component, part number 8182177, measures position via a mechanical and electrical measuring principle across a sensing range of 0 degrees to 90 degrees. Featuring a contact-based switching output with an Omron SS-5 microswitch and a single-pin toggle switch function, the unit operates within a DC voltage range of 0 V to 30 V and an AC operating voltage range of 0 V to 230 V, utilizing a terminal strip screw connection. It maintains a Safety Integrity Level of SIL 3, functions in ambient temperatures from -20 °C to 70 °C, and carries c CSA us (OL), CE, UKCA, and RoHS compliant certifications. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8182177
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8182177.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: c CSA us (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
Certicate issuing authority: Eurocert. SIL202587141
Note on materials: RoHS compliant
Safety integrity level (SIL): SIL 3
Measured variable: Position
Measuring principle: Mechanical/electrical
Sensing range: 0 deg...90 deg
Ambient temperature: -20 °C...70 °C
Switching output: Contact-based
Switching element function: Toggle switch, single-pin
Max. switching output voltage DC: 30 V
Max. output current AC: 3000 mA
Max. output current DC: 1000 mA
Operating voltage range AC: 0 V...230 V
DC operating voltage range: 0 V...30 V
Microswitch type: Omron SS-5
Electrical connection: Screw terminal
Electrical connection 1, connection type: Terminal strip
Electrical connection 1, cable outlet: Straight
Electrical connection 1, design: Square
Electrical connection 1, connection technology: Screw terminal
Electrical connection 1, number of pins/wires: 10
Closable nominal conductor cross-section: 0.25 mm²...2.5 mm²
Cable tting: M20x1.5
Dimensions W x L x H: 130 mm x 85 mm x 128 mm | 130 mm x 85 mm x 138 mm | 130 mm x 85 mm x 158 mm
