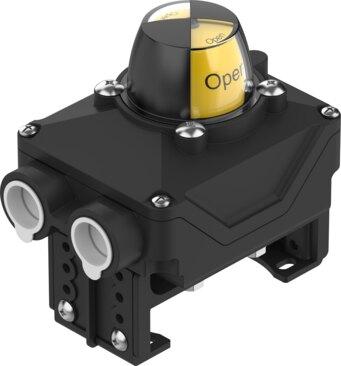

Reference imageConfirm configuration by manufacturer part number.
Festo
8182178
Limit switch box SRBK-CA4-YR90-N-1-P-C2
The Festo 8182178 is an inductive industrial component utilizing a P&F NBB2-V3-E2 microswitch type to measure position across a 0 deg to 90 deg sensing range. Operating on a 10 V to 30 V DC voltage range, it features a PNP N.O. contact switching output with a maximum DC output current of 100 mA, 3 V voltage drop, 15 mA idle current, and 0 mA to 0.5 mA residual current, supplemented by pulsed short-circuit protection and reverse polarity protection for all electrical connections. Certified to SIL 3 with Eurocert certificate SIL202587141 and c CSA us (OL), this RoHS-compliant unit operates within an ambient temperature of -20 deg C to 70 deg C while carrying CE and UKCA markings per applicable EU and UK directives for EMC, low voltage, and RoHS. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8182178
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8182178.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- c CSA us (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Certicate issuing authority
- Eurocert. SIL202587141
- Note on materials
- RoHS compliant
- Safety integrity level (SIL)
- SIL 3
- Measured variable
- Position
- Measuring principle
- Inductive
- Sensing range
- 0 deg...90 deg
- Ambient temperature
- -20 °C...70 °C
- Switching output
- PNP
- Switching element function
- N.O. contact
- Max. output current DC
- 100 mA
- Voltage drop
- 3 V
- Residual current
- 0 mA...0.5 mA
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...30 V
- Idle current
- 15 mA
- Reverse polarity protection
- for all electrical connections
- Microswitch type
- Switch type P&F NBB2-V3-E2
- Electrical connection
- Screw terminal
- Electrical connection 1, connection type
- Terminal strip
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, design
- Square
- Electrical connection 1, connection technology
- Screw terminal
- Electrical connection 1, number of pins/wires
- 10
- Closable nominal conductor cross-section
- 0.25 mm²...2.5 mm²
- Cable tting
- M20x1.5
- Dimensions W x L x H
- 130 mm x 85 mm x 128 mm
