Festo
8182179

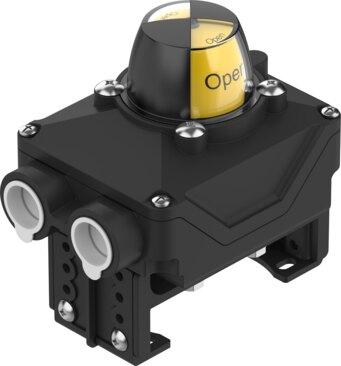

Limit switch box SRBK-CA4-YR90-N-1-ZU-C2
Engineered by Festo, the part number 8182179 is an inductive industrial component utilizing a P&F NBB3-V3-Z4 microswitch type to measure position across a sensing range of 0 deg to 90 deg within an ambient temperature range of -20 °C to 70 °C. This non-contacting 2-wire device features a normally open switching element function, screw terminal electrical connection, reverse polarity protection for all electrical connections, a DC operating voltage range of 5 V to 60 V, and a maximum DC output current of 100 mA. It complies with EU EMC, low voltage, and RoHS directives, UKCA electrical equipment, EMC, and RoHS instructions, and holds c CSA us (OL) certification along with a SIL 3 safety integrity level issued by Eurocert under SIL202587141. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8182179
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8182179.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- c CSA us (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Certicate issuing authority
- Eurocert. SIL202587141
- Note on materials
- RoHS compliant
- Safety integrity level (SIL)
- SIL 3
- Measured variable
- Position
- Measuring principle
- Inductive
- Sensing range
- 0 deg...90 deg
- Ambient temperature
- -20 °C...70 °C
- Switching output
- Non-contacting, 2-wire
- Switching element function
- N.O. contact
- Max. output current DC
- 100 mA
- Voltage drop
- 4 V
- Minimum load current
- 4 mA
- Residual current
- 0.4 mA...0.55 mA
- DC operating voltage range
- 5 V...60 V
- Reverse polarity protection
- for all electrical connections
- Microswitch type
- P&F NBB3-V3-Z4
- Electrical connection
- Screw terminal
- Electrical connection 1, connection type
- Terminal strip
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, design
- Square
- Electrical connection 1, connection technology
- Screw terminal
- Electrical connection 1, number of pins/wires
- 10
- Closable nominal conductor cross-section
- 0.25 mm²...2.5 mm²
- Cable tting
- M20x1.5
- Dimensions W x L x H
- 130 mm x 85 mm x 128 mm | 130 mm x 85 mm x 138 mm
