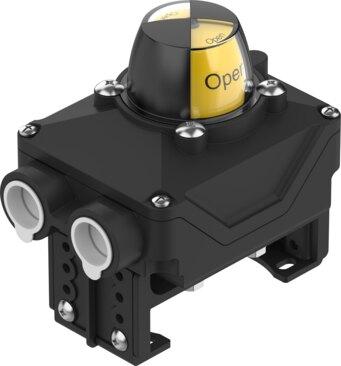

Reference imageConfirm configuration by manufacturer part number.
Festo
8182180
Limit switch box SRBK-CA4-YR90-R-2A-1W-C2
The Festo part number 8182180 is an industrial component featuring a magnetic reed measuring principle and a 0 deg to 90 deg sensing range for position measurement. Operating with a contact-based toggle switch, single-pin switching element function and a Hamlin 59140-030 microswitch type, it supports a screw terminal electrical connection with maximum AC and DC output currents of 180 mA and 250 mA respectively. This unit achieves a Safety Integrity Level of SIL 3, complies with EU and UKCA directives for EMC, low voltage, and RoHS, and carries c CSA us (OL) certification along with Eurocert SIL202587141. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8182180
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8182180.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- c CSA us (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Certicate issuing authority
- Eurocert. SIL202587141
- Note on materials
- RoHS compliant
- Safety integrity level (SIL)
- SIL 3
- Measured variable
- Position
- Measuring principle
- Magnetic reed
- Sensing range
- 0 deg...90 deg
- Ambient temperature
- -20 °C...70 °C
- Switching output
- Contact-based
- Switching element function
- Toggle switch, single-pin
- Max. output current AC
- 180 mA
- Max. output current DC
- 250 mA
- Min. switching capacity AC
- 5 W
- Max. switching capacity DC
- 5 W
- Operating voltage range AC
- 0 V...120 V
- DC operating voltage range
- 0 V...175 V
- Microswitch type
- Hamlin 59140-030
- Electrical connection
- Screw terminal
- Electrical connection 1, connection type
- Terminal strip
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, design
- Square
- Electrical connection 1, connection technology
- Screw terminal
- Electrical connection 1, number of pins/wires
- 10
- Closable nominal conductor cross-section
- 0.25 mm²...2.5 mm²
- Cable tting
- M20x1.5
- Dimensions W x L x H
- 130 mm x 85 mm x 128 mm | 130 mm x 85 mm x 138 mm
