Name: Festo 8182182 Limit switch box SRBK-CA4-YR90-N-1-P-M12
Brand: Festo

Limit switch box SRBK-CA4-YR90-N-1-P-M12

The Festo part number 8182182 is an inductive industrial component measuring position within a 0 deg to 90 deg sensing range using a P&F NBB2-V3-E2 microswitch type with an M12x1 electrical connection. It operates on a DC voltage range of 10 V to 30 V, featuring a PNP switching output, N.O. contact switching element function, 100 mA max DC output current, pulsed short-circuit protection, and reverse polarity protection for all electrical connections. This SIL 3 rated device functions in ambient temperatures from -20 °C to 70 °C, complies with RoHS material standards, and carries CE and UKCA markings backed by certificate Eurocert. SIL202587141. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8182182
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8182182.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

CE marking (see declaration of conformity): As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
Certicate issuing authority: Eurocert. SIL202587141
Note on materials: RoHS compliant
Safety integrity level (SIL): SIL 3
Measured variable: Position
Measuring principle: Inductive
Sensing range: 0 deg...90 deg
Ambient temperature: -20 °C...70 °C
Switching output: PNP
Switching element function: N.O. contact
Max. output current DC: 100 mA
Voltage drop: 3 V
Residual current: 0 mA...0.5 mA
Short-circuit protection: Pulsed
DC operating voltage range: 10 V...30 V
Idle current: 15 mA
Reverse polarity protection: for all electrical connections
Microswitch type: Switch type P&F NBB2-V3-E2
Electrical connection: M12x1
Electrical connection 1, connection type: Plug
Electrical connection 1, cable outlet: Straight
Electrical connection 1, design: Round

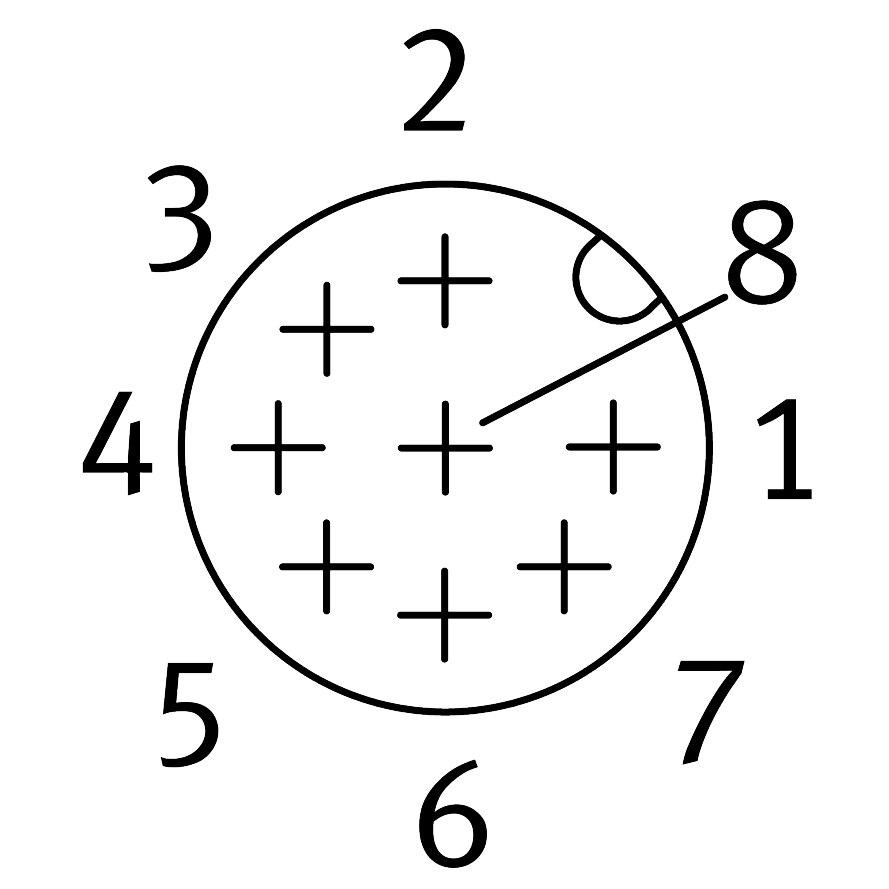

Electrical connection 1, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 1, number of pins/wires: 8
Cable tting: M20x1.5
Dimensions W x L x H: 143 mm x 85 mm x 128 mm
