Festo
8182183

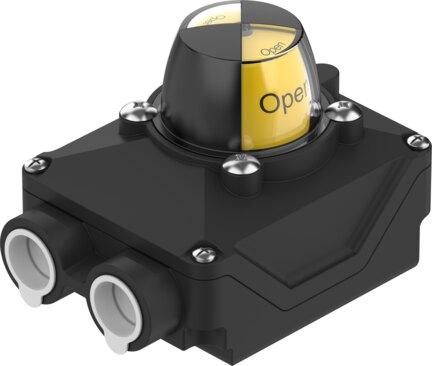

Limit switch box SRBK-CA5-YR90-MW-22A-1W-C2
The Festo part number 8182183 is an industrial component utilizing a mechanical and electrical measuring principle to monitor position across a sensing range of 0 deg to 90 deg. Featuring an Omron SS-5 microswitch type with a single-pin toggle switch switching element function and contact-based switching output, this unit operates within a DC voltage range of 0 V to 30 V and an AC operating voltage range of 0 V to 230 V, utilizing a screw terminal electrical connection via a terminal strip. It carries a Safety Integrity Level of SIL 3, holds c CSA us (OL) certification issued by Eurocert under SIL202587141, meets RoHS material standards, and bears CE and UKCA markings in accordance with applicable EU and UK directives for EMC, low voltage, and RoHS. Please submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8182183
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8182183.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- c CSA us (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Certicate issuing authority
- Eurocert. SIL202587141
- Note on materials
- RoHS compliant
- Safety integrity level (SIL)
- SIL 3
- Measured variable
- Position
- Measuring principle
- Mechanical/electrical
- Sensing range
- 0 deg...90 deg
- Ambient temperature
- -20 °C...70 °C
- Switching output
- Contact-based
- Switching element function
- Toggle switch, single-pin
- Max. switching output voltage DC
- 30 V
- Max. output current AC
- 3000 mA
- Max. output current DC
- 1000 mA
- Operating voltage range AC
- 0 V...230 V
- DC operating voltage range
- 0 V...30 V
- Microswitch type
- Omron SS-5
- Electrical connection
- Screw terminal
- Electrical connection 1, connection type
- Terminal strip
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, design
- Square
- Electrical connection 1, connection technology
- Screw terminal
- Electrical connection 1, number of pins/wires
- 10
- Closable nominal conductor cross-section
- 0.25 mm²...2.5 mm²
- Cable tting
- M20x1.5
- Dimensions W x L x H
- 119 mm x 85 mm x 89 mm
- Type of mounting
- on ange according to ISO 5211
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8182183. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
