8182185

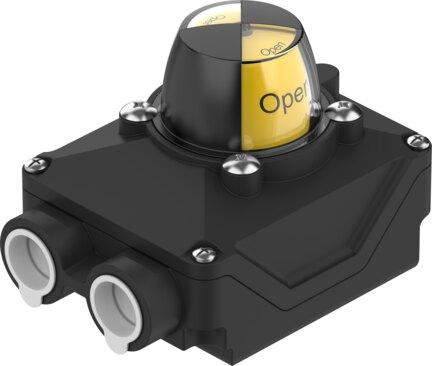

Name: Festo 8182185 Limit switch box SRBK-CA5-YR90-N-1-ZU-C2
Brand: Festo

Limit switch box SRBK-CA5-YR90-N-1-ZU-C2

The Festo part number 8182185 is an inductive industrial component utilizing a P&F NBB3-V3-Z4 microswitch to measure position across a sensing range of 0 deg to 90 deg with a non-contacting 2-wire N.O. contact switching output. It operates within a DC operating voltage range of 5 V to 60 V, supports a maximum DC output current of 100 mA, and functions within an ambient temperature range of -20 °C to 70 °C while meeting SIL 3 safety integrity level standards, c CSA us (OL) certification, RoHS compliance, and CE and UKCA marking directives. Electrical connections are established via a screw terminal featuring reverse polarity protection for all connections. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8182185
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8182185.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: c CSA us (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
Certicate issuing authority: Eurocert. SIL202587141
Note on materials: RoHS compliant
Safety integrity level (SIL): SIL 3
Measured variable: Position
Measuring principle: Inductive
Sensing range: 0 deg...90 deg
Ambient temperature: -20 °C...70 °C
Switching output: Non-contacting, 2-wire
Switching element function: N.O. contact
Max. output current DC: 100 mA
Voltage drop: 4 V
Minimum load current: 4 mA
Residual current: 0.4 mA...0.55 mA
DC operating voltage range: 5 V...60 V
Reverse polarity protection: for all electrical connections
Microswitch type: P&F NBB3-V3-Z4
Electrical connection: Screw terminal
Electrical connection 1, connection type: Terminal strip
Electrical connection 1, cable outlet: Straight
Electrical connection 1, design: Square
Electrical connection 1, connection technology: Screw terminal
Electrical connection 1, number of pins/wires: 10
Closable nominal conductor cross-section: 0.25 mm²...2.5 mm²
Cable tting: M20x1.5
Dimensions W x L x H: 119 mm x 85 mm x 89 mm

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8182185. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
