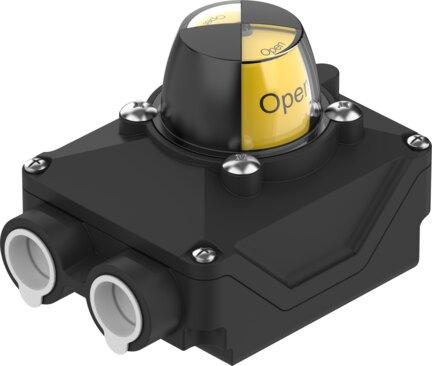

Name: Festo 8182186 Limit switch box SRBK-CA5-YR90-R-2A-1W-C2
Brand: Festo

Limit switch box SRBK-CA5-YR90-R-2A-1W-C2

The Festo part number 8182186 is an industrial component utilizing a magnetic reed measuring principle to measure position across a 0 deg to 90 deg sensing range with a contact-based switching output. This toggle switch features a single-pin switching element function incorporating a Hamlin 59140-030 microswitch and a screw terminal electrical connection, operating within a temperature range of -20 °C to 70 °C and an operating voltage range of 0 V to 120 V AC and 0 V to 175 V DC. It provides a maximum AC output current of 180 mA, a maximum DC output current of 250 mA, and a minimum switching capacity of 5 W alongside a maximum DC switching capacity of 5 W, while carrying a Safety Integrity Level of SIL 3 certified by Eurocert under SIL202587141. Furthermore, the unit holds c CSA us (OL) certification, displays CE and UKCA markings per applicable EU and UK directives for EMC, low voltage, and RoHS, and is RoHS compliant. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8182186
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8182186.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: c CSA us (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
Certicate issuing authority: Eurocert. SIL202587141
Note on materials: RoHS compliant
Safety integrity level (SIL): SIL 3
Measured variable: Position
Measuring principle: Magnetic reed
Sensing range: 0 deg...90 deg
Ambient temperature: -20 °C...70 °C
Switching output: Contact-based
Switching element function: Toggle switch, single-pin
Max. output current AC: 180 mA
Max. output current DC: 250 mA
Min. switching capacity AC: 5 W
Max. switching capacity DC: 5 W
Operating voltage range AC: 0 V...120 V
DC operating voltage range: 0 V...175 V
Microswitch type: Hamlin 59140-030
Electrical connection: Screw terminal
Electrical connection 1, connection type: Terminal strip
Electrical connection 1, cable outlet: Straight
Electrical connection 1, design: Square
Electrical connection 1, connection technology: Screw terminal
Electrical connection 1, number of pins/wires: 10
Closable nominal conductor cross-section: 0.25 mm²...2.5 mm²
Cable tting: M20x1.5
Dimensions W x L x H: 119 mm x 85 mm x 89 mm

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8182186. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
