Name: Festo 8182487 Guide axis ELFD-KF-60- -
Brand: Festo

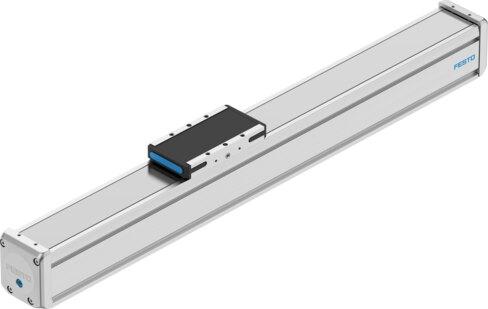

Guide axis ELFD-KF-60- -

The Festo industrial component, part number 8182487, is a guide featuring a recirculating ball bearing structural design and a size 60 profile with a working stroke of 50 mm to 5000 mm and a 4.5 mm stroke reserve. This unit operates in any mounting position with a 100% duty cycle, supporting a maximum speed of 3 m/s and a maximum acceleration of 50 m/s². It offers an IP40 degree of protection, an ambient temperature range of 0 °C to 60 °C, and is suitable for battery production with reduced Cu/Zn/Ni values (F1a) alongside cleanroom classification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8182487
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8182487.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Working stroke: 50 mm...5000 mm
Size: 60
Stroke reserve: 4.5 mm
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Guide
Max. acceleration: 50 m/s²
Max. speed: 3 m/s
Duty cycle: 100%
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-C1-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1 (with vacuum insert) | Class 6 according to ISO 14644-1
Storage temperature: -20 °C...60 °C
Degree of protection: IP40
Ambient temperature: 0 °C...60 °C
Impact energy in the end positions: 0.000125 J
2nd moment of area Iy: 485200 mm⁴
2nd moment of area Iz: 730600 mm⁴
Max. force Fy: 2200 N...4400 N
Max. force Fz: 2200 N...4400 N
Max. torque Mx: 38 Nm...75 Nm
Max. torque My: 42 Nm...390 Nm
Max. torque Mz: 15 Nm...140 Nm
Max. force Fy total axis: 1945 N...3890 N
Max. force Fz total axis: 2000 N...3600 N
Max. moment Mx total axis: 41 Nm...85 Nm
Max. moment My total axis: 36 Nm...128 Nm
Max. moment Mz total axis: 36 Nm...133 Nm
Torsion moment of inertia It: 192900 mm⁴
Displacement force: 6 N

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8182487. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
