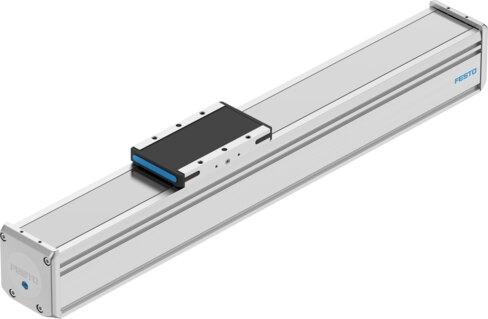

Name: Festo 8182488 Guide axis ELFD-KF-80- -
Brand: Festo

Guide axis ELFD-KF-80- -

The Festo size 80 industrial component features a structural guide design with a recirculating ball bearing guide and an adjustable working stroke ranging from 50 mm to 5000 mm with a 4.5 mm stroke reserve. This unit supports a 100% duty cycle, a maximum speed of 3 m/s, a maximum acceleration of 50 m/s², and a maximum force Fy between 4200 N and 8433 N in any mounting position. It achieves an IP40 degree of protection, ISO 14644-1 cleanroom suitability, and compatibility with Li-ion battery production under reduced Cu/Zn/Ni values. Submit the exact part number, quantity, and application requirements for an RFQ quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8182488
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8182488.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Working stroke: 50 mm...5000 mm
Size: 80
Stroke reserve: 4.5 mm
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Guide
Max. acceleration: 50 m/s²
Max. speed: 3 m/s
Duty cycle: 100%
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-C1-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1 (with vacuum insert) | Class 6 according to ISO 14644-1
Storage temperature: -20 °C...60 °C
Degree of protection: IP40
Ambient temperature: 0 °C...60 °C
Impact energy in the end positions: 0.00025 J
2nd moment of area Iy: 1213000 mm⁴
2nd moment of area Iz: 2052000 mm⁴
Max. force Fy: 4200 N...8433 N
Max. force Fz: 4200 N...8400 N
Max. torque Mx: 106 Nm...200 Nm
Max. torque My: 42 Nm...390 Nm
Max. torque Mz: 42 Nm...390 Nm
Max. force Fy total axis: 2800 N...5500 N
Max. force Fz total axis: 3500 N...5600 N
Max. moment Mx total axis: 106 Nm...200 Nm
Max. moment My total axis: 80 Nm...356 Nm
Max. moment Mz total axis: 79 Nm...383 Nm
Torsion moment of inertia It: 405000 mm⁴
Displacement force: 6 N

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8182488. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
