Name: Festo 8182489 Guide axis ELFD-KF-120- -
Brand: Festo

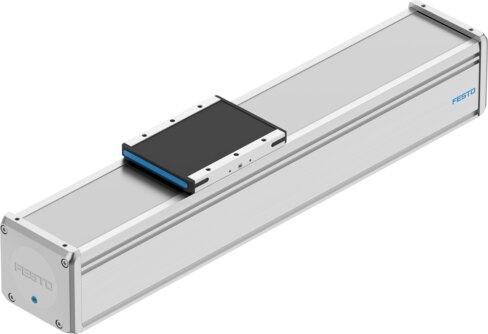

Guide axis ELFD-KF-120- -

The Festo size 120 industrial component features a recirculating ball bearing guide and a structural guide design with a working stroke ranging from 50 mm to 5000 mm and a 5.5 mm stroke reserve. This unit operates at a maximum acceleration of 50 m/s², a maximum speed of 3 m/s, a 100% duty cycle, and supports any mounting position. It achieves an IP40 degree of protection, operates within an ambient temperature range of 0 °C to 60 °C, and is suitable for Li-ion battery production with reduced Cu/Zn/Ni values (F1a). Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8182489
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8182489.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Working stroke: 50 mm...5000 mm
Size: 120
Stroke reserve: 5.5 mm
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Guide
Max. acceleration: 50 m/s²
Max. speed: 3 m/s
Duty cycle: 100%
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1 (with vacuum insert) | Class 6 according to ISO 14644-1
Storage temperature: -20 °C...60 °C
Degree of protection: IP40
Ambient temperature: 0 °C...60 °C
Impact energy in the end positions: 0.001 J
2nd moment of area Iy: 3550000 mm⁴
2nd moment of area Iz: 8985000 mm⁴
Max. force Fy: 4300 N...8400 N
Max. force Fz: 4300 N...8400 N
Max. torque Mx: 170 Nm...350 Nm
Max. torque My: 50 Nm...620 Nm
Max. torque Mz: 60 Nm...580 Nm
Max. force Fy total axis: 2957 N...5914 N
Max. force Fz total axis: 6500 N...9000 N
Max. moment Mx total axis: 251 Nm...520 Nm
Max. moment My total axis: 80 Nm...674 Nm
Max. moment Mz total axis: 105 Nm...527 Nm
Torsion moment of inertia It: 1433600 mm⁴
Displacement force: 12.5 N
