Festo
8183116

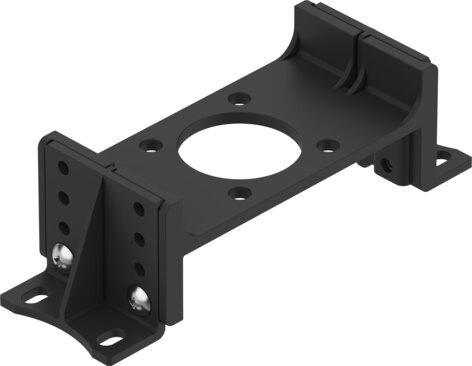

Mounting flange adapter DARQ-K-X1-A3-F05-R14
The Festo 8183116 is an industrial mounting flange adapter featuring a structural design built for any mounting position on flanges according to ISO 5211. Constructed from PA with high-alloy stainless steel nuts and discs alongside high-grade steel screws, this component achieves a CRC rating of 3 for high corrosion stress and VDMA24364 Zone III LABS conformity. It conforms to ISO 5211 and VDI/VDE 3845 (NAMUR) standards, including connection points for positioners and position sensors conforming to VDI/VDE 3845 Size AA 1, AA 2, and AA 3, with a product weight of 100 g, storage temperatures from -20 °C to 50 °C, ambient temperatures from -20 °C to 70 °C, and RoHS-compliant materials. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8183116
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8183116.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Conforms to standard
- ISO 5211 | VDI/VDE 3845 (NAMUR)
- Structural design
- Mounting ange adapter
- Connection point for positioner and position sensor conforms to
- VDI/VDE 3845 Size AA 1
- standard
- VDI/VDE 3845 Size AA 2 | VDI/VDE 3845 Size AA 3
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...50 °C
- Ambient temperature
- -20 °C...70 °C
- Product weight
- 100 g
- Type of mounting
- on ange according to ISO 5211
- Note on materials
- RoHS compliant
- Mounting adapter material
- PA
- Nut material
- high-alloy stainless steel
- Disc material
- high-alloy stainless steel
- Material of screws
- High-grade steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8183116. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
