Festo
8183117

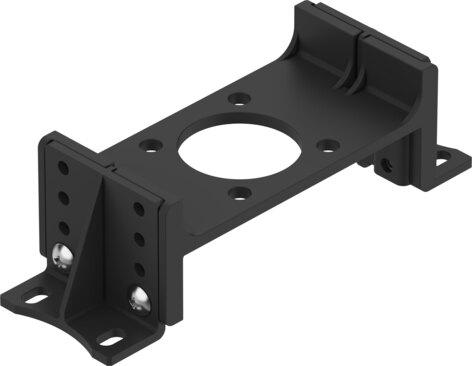

Mounting flange adapter DARQ-K-X1-A3-F05-R15
The Festo 8183117 is an electrically conductive PA66 mounting flange adapter featuring high-alloy stainless steel nuts, discs, and screws, with a product weight of 100 g and a corrosion resistance class of CRC 3 for high corrosion stress. This component conforms to ISO 5211 and VDI/VDE 3845 NAMUR standards, supporting mounting positions in any orientation and connection points for positioners and position sensors of size AA 1, AA 2, and AA 3. The RoHS-compliant assembly operates within ambient temperatures from -20 °C to 70 °C and storage temperatures from -20 °C to 50 °C, while meeting VDMA24364 Zone III LABS conformity for flange mounting according to ISO 5211. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8183117
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8183117.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Conforms to standard
- ISO 5211 | VDI/VDE 3845 (NAMUR)
- Structural design
- Mounting ange adapter
- Connection point for positioner and position sensor conforms to
- VDI/VDE 3845 Size AA 1
- standard
- VDI/VDE 3845 Size AA 2 | VDI/VDE 3845 Size AA 3
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...50 °C
- Ambient temperature
- -20 °C...70 °C
- Product weight
- 100 g
- Type of mounting
- on ange according to ISO 5211
- Note on materials
- RoHS compliant
- Material of mounting bracket
- PA66, electrically conductive
- Mounting adapter material
- PA66, electrically conductive
- Nut material
- high-alloy stainless steel
- Disc material
- high-alloy stainless steel
- Material of screws
- High-grade steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8183117. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
