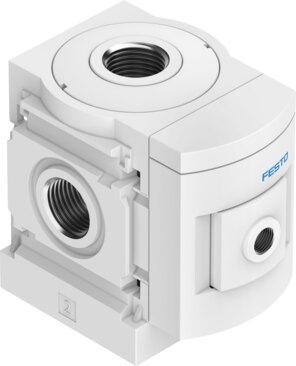

Name: Festo 8183567 Branching module MS6-FRM-1/2-A8-F1A
Brand: Festo

Branching module MS6-FRM-1/2-A8-F1A

The Festo part number 8183567 is a branching module structural design featuring a G1/2 pneumatic connection 1 and an operating pressure range from 0 bar to 20 bar. This industrial component delivers a standard nominal flow rate in main flow direction 1 to 2 of 14700 l/min, alongside 4400 l/min for the outlet at the top and 4600 l/min for the outlet down, while operating with compressed air as per ISO 8573-1:2010 [7:4:4] or inert gases. Built with a corrosion resistance class of 2 and a product weight of 458 g, it supports AC operating voltages from 0 V to 250 V and DC operating voltages from 0 V to 125 V within a temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8183567
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8183567.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Application note: Foreign particles can remain stuck to the product or form during | installation. Depending on the application, it may be necessary to purge | the product with clean compressed air, clean it after installation and | operate it with ducted exhaust air.
Mounting position: Any
Structural design: Branching module
Operating pressure: 0 bar...20 bar
Standard nominal ow rate in main ow direction 1 -> 2: 14700 l/min
Standard nominal ow rate outlet at top: 4400 l/min
Standard nominal ow rate outlet down: 4600 l/min
Operating voltage range AC: 0 V...250 V
DC operating voltage range: 0 V...125 V
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Storage temperature: -10 °C...60 °C
For use in the food industry: See supplementary material information
Temperature of medium: -10 °C...60 °C
Ambient temperature: -10 °C...60 °C
Product weight: 458 g
Pneumatic connection 1: G1/2
Pneumatic connection 2: G1/2
Pneumatic connection 3: G1/2
Pneumatic connection 4: G1/2
Note on materials: RoHS compliant
Housing material: Die-cast aluminum
