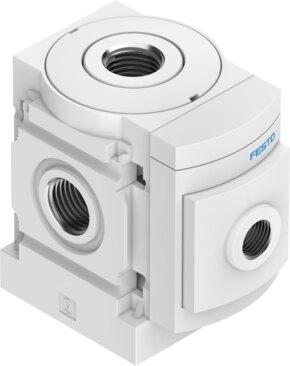

Name: Festo 8183570 Branching module MS4-FRM-1/4-A8-F1A
Brand: Festo

Branching module MS4-FRM-1/4-A8-F1A

The Festo 8183570 is a branching module featuring G1/4 pneumatic connections for ports 1, 2, and 3, supporting an operating pressure range from 0 bar to 14 bar with compressed air conforming to ISO 8573-1:2010 [7:4:4] or inert gases. It delivers a standard nominal flow rate of 4600 l/min in the main flow direction 1 to 2, alongside 1500 l/min for both the top and down outlets, while weighing 165 g and offering a moderate corrosion resistance class (CRC 2). This component allows for operation with oil lubrication and maintains an ambient, medium, and storage temperature range of -10 °C to 60 °C in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8183570
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8183570.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Application note: Foreign particles can remain stuck to the product or form during | installation. Depending on the application, it may be necessary to purge | the product with clean compressed air, clean it after installation and | operate it with ducted exhaust air.
Mounting position: Any
Structural design: Branching module
Operating pressure: 0 bar...14 bar
Standard nominal ow rate in main ow direction 1 -> 2: 4600 l/min
Standard nominal ow rate outlet at top: 1500 l/min
Standard nominal ow rate outlet down: 1500 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Storage temperature: -10 °C...60 °C
For use in the food industry: See supplementary material information
Temperature of medium: -10 °C...60 °C
Ambient temperature: -10 °C...60 °C
Product weight: 165 g
Pneumatic connection 1: G1/4
Pneumatic connection 2: G1/4
Pneumatic connection 3: G1/4
Pneumatic connection 4: G1/4
Note on materials: RoHS compliant
Housing material: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8183570. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
