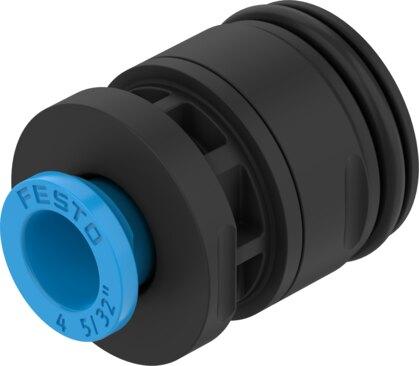

Reference imageConfirm configuration by manufacturer part number.
Festo
8184512
Cartridge NPQX-D-PC12-T532-P10
This straight design Festo industrial component, part number 8184512, features a standard size with a nominal width of 2.6 mm and a tubing insertion depth of 15 mm. Operating with compressed air as per ISO 8573-1:2010 [7:4:4] or inert gases, it supports pressures ranging from -0.095 MPa to 1 MPa and temperatures between -10 °C and 60 °C. The unit utilizes a push-pull structural design with a retaining clamp, an O-ring seal on the screwed plug, a 12 mm cartridge pneumatic connection 1, and a pneumatic connection 2 for a 5/32" outside diameter tubing. Submit part number 8184512, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8184512
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8184512.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 2.6 mm
- Tubing insertion depth
- 15 mm
- Type of seal on screwed plug
- O-ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 1.24 g
- Type of mounting
- With retaining clamp
- Pneumatic connection 1
- Cartridge 12 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 5/32"
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- PA-reinforced
- O-ring material
- HNBR
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
