Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

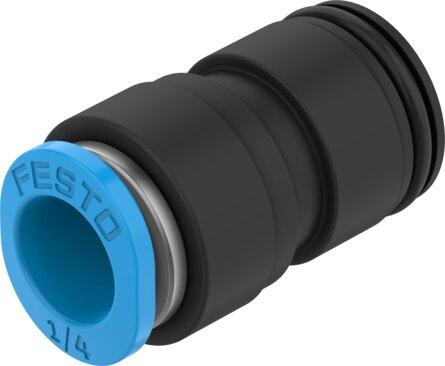

Reference imageConfirm configuration by manufacturer part number.
Festo
8184514
Cartridge NPQX-D-PC12-T14-P10
The Festo part number 8184514 is a straight industrial component featuring a push-pull structural design with a standard size and a 4.5 mm nominal width. This unit supports a 12 mm cartridge pneumatic connection 1, a 1/4" pneumatic tubing outer diameter connection 2, an 11.93 mm tubing insertion depth, and a blue releasing ring. It operates within a pressure range of -0.095 MPa to 1 MPa using compressed air or inert gases across an ambient temperature of -10 °C to 60 °C, offering a corrosion resistance class of 3 and weighing 2.6 g. Request a quote by submitting the exact part number, pack size quantity of 10, and your application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8184514
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8184514.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 4.5 mm
- Tubing insertion depth
- 11.93 mm
- Type of seal on screwed plug
- without seal
- Mounting position
- Horizontal
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 2.6 g
- Type of mounting
- With retaining clamp
- Pneumatic connection 1
- Cartridge 12 mm
- Pneumatic connection 2
- for pneumatic tubing outer diameter 1/4"
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8184514. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
