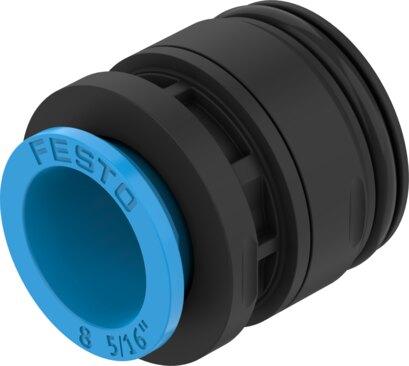

Name: Festo 8184515 Cartridge NPQX-D-PC15-T516-P10
Brand: Festo

Cartridge NPQX-D-PC15-T516-P10

This Festo industrial component, part number 8184515, is a straight-design pneumatic fitting featuring a nominal width of 6 mm, a 15.2 mm tubing insertion depth, and a push-pull structural design utilizing an O-ring seal on the screwed plug. The unit accommodates compressed air per ISO 8573-1:2010 [7:4:4] or inert gases within an operating pressure range of -0.095 MPa to 1 MPa (-0.95 bar to 10 bar / -13.775 psi to 145 psi) and an ambient temperature range of -10 °C to 60 °C. Featuring a 15 mm cartridge for pneumatic connection 1 and a 5/16" outer diameter tubing for connection 2, the fitting includes a blue releasing ring, weighs 1.9 g, offers CRC 3 high corrosion stress resistance, and is supplied in a pack size of 10. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8184515
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8184515.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: Standard
Nominal width: 6 mm
Tubing insertion depth: 15.2 mm
Type of seal on screwed plug: O-ring
Mounting position: Any
Design: Straight design
Pack size: 10
Structural design: Push-pull principle
Operating pressure: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Operating pressure for entire temperature range: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 3 - High corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...60 °C
Product weight: 1.9 g
Type of mounting: With retaining clamp
Pneumatic connection 1: Cartridge 15 mm
Pneumatic connection 2: for pneumatic tubing outside diameter 5/16"
Releasing ring color: Blue
Note on materials: RoHS compliant
Housing material: PA-reinforced
O-ring material: HNBR
Material of tubing seal: NBR
Material of tube retaining claw: high-alloy stainless steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8184515. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
