8184925

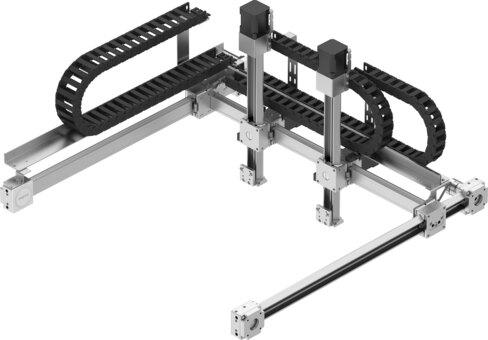

Name: Festo 8184925 Three-dimensional gantry EXCL-15-200-300-Z1-100-GF-ST-R-1-EK-M6-AN
Brand: Festo

Three-dimensional gantry EXCL-15-200-300-Z1-100-GF-ST-R-1-EK-M6-AN

The Festo part number 8184925 is a space portal system industrial component featuring a size 15 structural design with a 200 mm X-axis stroke, a 300 mm Y-axis stroke, and a 100 mm Z-axis 1 stroke. Driven by a stepper motor utilizing microstepping at over 4000 steps/rev, it achieves a maximum speed of 0.5 m/s, a maximum acceleration of 1 m/s², and a repetition accuracy of ±0.1 mm with linear interpolation. Control and protection features comprise P position controller, direct, synchronous, homing, and open-loop operation modes, software-adjustable current reduction and nominal current setting, voltage failure detection, software end position detection, and a green/yellow/red LED display for horizontal mounting. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8184925
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8184925.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 15
Stroke of the X-axis: 200 mm
Stroke of the Y-axis: 300 mm
Stroke of the Z-axis 1: 100 mm
Controller operating mode: P position controller | Direct operation | Synchronous operating modes | Homing | Open-loop operation
Mode of operation: Microstepping, > 4000 steps/rev
Adjustable current reduction: About software
Mounting position: Horizontal
Protective function: Voltage failure detection | Software end position detection
Structural design: Space portal system
Type of interpolation: Linear interpolation
Motor type: Stepper motor
Position mode: Transfer position directly
Display: Green/yellow/red LED
Nominal current setting: About software
Max. acceleration: 1 m/s²
Max. speed: 0.5 m/s
Repetition accuracy: ±0.1 mm
Max. search velocity X-axis: 0.03 m/s
Max. creep velocity X-axis: 0.003 m/s
Max. search velocity Y-axis: 0.03 m/s
Max. creep velocity Y-axis: 0.003 m/s
Max. search velocity Z-axis: 0.015 m/s
Max. creep velocity Z-axis: 0.003 m/s
Duty cycle: 100%
Nominal voltage, logic supply DC: 5 V
Nominal voltage, load supply DC: 24 V
Nominal voltage X-axis: 1.68 V
