Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

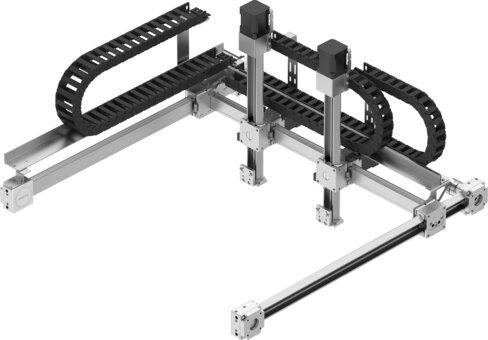

Reference imageConfirm configuration by manufacturer part number.
Festo
8184926
Three-dimensional gantry EXCL-15-400-700-Z2-200-200-GF-ST-R-1-EK-M6-AN
The Festo 8184926 is a space portal system structural design utilizing stepper motors with a microstepping mode exceeding 4000 steps/rev and linear interpolation. This industrial component features a size of 15, a horizontal mounting position, an X-axis stroke of 400 mm, a Y-axis stroke of 700 mm, and dual Z-axis strokes of 200 mm each. It delivers a maximum speed of 0.5 m/s, a maximum acceleration of 1 m/s², a repetition accuracy of ±0.1 mm, and a max search velocity for the X-axis of 0.03 m/s. Controller operating modes comprise P position controller, direct operation, synchronous operating modes, homing, and open-loop operation, supported by voltage failure and software end position detection protective functions. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8184926
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8184926.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 15
- Stroke of the X-axis
- 400 mm
- Stroke of the Y-axis
- 700 mm
- Stroke of the Z-axis 1
- 200 mm
- Stroke of the Z-axis 2
- 200 mm
- Controller operating mode
- P position controller | Direct operation | Synchronous operating modes | Homing | Open-loop operation
- Mode of operation
- Microstepping, > 4000 steps/rev
- Adjustable current reduction
- About software
- Mounting position
- Horizontal
- Protective function
- Voltage failure detection | Software end position detection
- Structural design
- Space portal system
- Type of interpolation
- Linear interpolation
- Motor type
- Stepper motor
- Position mode
- Transfer position directly
- Display
- Green/yellow/red LED
- Nominal current setting
- About software
- Max. acceleration
- 1 m/s²
- Max. speed
- 0.5 m/s
- Repetition accuracy
- ±0.1 mm
- Max. search velocity X-axis
- 0.03 m/s
- Max. creep velocity X-axis
- 0.003 m/s
- Max. search velocity Y-axis
- 0.03 m/s
- Max. creep velocity Y-axis
- 0.003 m/s
- Max. search velocity Z-axis
- 0.015 m/s
- Max. creep velocity Z-axis
- 0.003 m/s
- Duty cycle
- 100%
- Nominal voltage, logic supply DC
- 5 V
- Nominal voltage, load supply DC
- 24 V
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8184926. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
