Festo
8186872

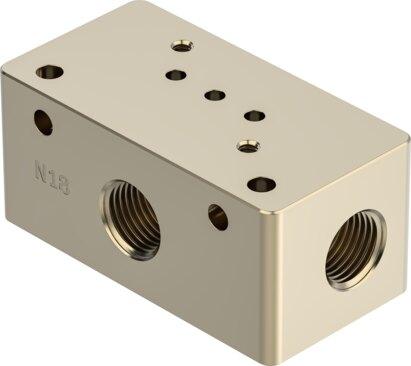

Sub-base VABS-K3-16S-20-N18-P
The Festo industrial component, part number 8186872, is a size 16 valve featuring a nominal width of 2 mm and a lateral connection direction for a single valve position. This 26 g unit accommodates both gaseous and liquid media with a reversible flow direction, utilizing an internal thread 1/8 NPT fluid connector and operating within a medium and ambient temperature range of 0 °C to 50 °C. It is built with a corrosion resistance class of CRC 0 and conforms to VDMA24364 Zone III LABS standards, requiring specific material resistance observation during operation. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8186872
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8186872.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Nominal width
- 2 mm
- Valve size
- 16 mm
- Fluid connector
- Internal thread 1/8 NPT
- Mounting position
- Any
- Structural design
- Lateral connection direction
- Max. no. of valve positions
- 1
- Flow direction
- Reversible
- Operating medium
- Liquid media | Gaseous media
- Information on operating and pilot media
- Observe resistance of materials that come into contact with media
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...70 °C
- For use in the food industry
- See supplementary material information
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Max. tightening torque for valve mounting
- 0.3 Nm
- Max. tightening torque of pneumatic tting
- 7 Nm
- Max. tightening torque
- 0.6 Nm
- Product weight
- 26 g
- Sub-base mounting type
- With through-hole
- Pneumatic valve mounting type
- With internal thread
- Note on materials
- RoHS compliant
- Material of sub-base
- PEEK
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8186872. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
