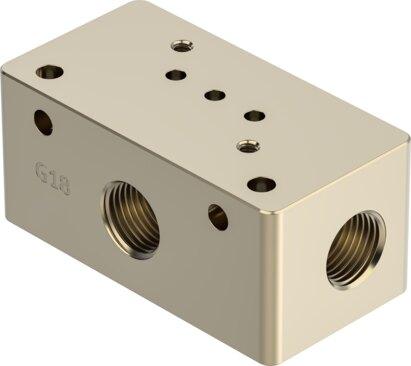

Reference imageConfirm configuration by manufacturer part number.
Festo
8186873
Sub-base VABS-K3-16S-20-G18-P
Festo Sub-base VABS-K3-16S-20-G18-P, part number 8186873, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 8186873
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8186873.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Size
- 16
- Nominal width
- 2 mm
- Valve size
- 16 mm
- Fluid connector
- Internal thread G1/8
- Mounting position
- Any
- Structural design
- Lateral connection direction
- Max. no. of valve positions
- 1
- Flow direction
- Reversible
- Operating medium
- Liquid media | Gaseous media
- Information on operating and pilot media
- Observe resistance of materials that come into contact with media
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...70 °C
- For use in the food industry
- See supplementary material information
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Max. tightening torque for valve mounting
- 0.3 Nm
- Max. tightening torque of pneumatic tting
- 7 Nm
- Max. tightening torque
- 0.6 Nm
- Product weight
- 26 g
- Sub-base mounting type
- With through-hole
- Pneumatic valve mounting type
- With internal thread
- Note on materials
- RoHS compliant
- Material of sub-base
- PEEK
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8186873. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
