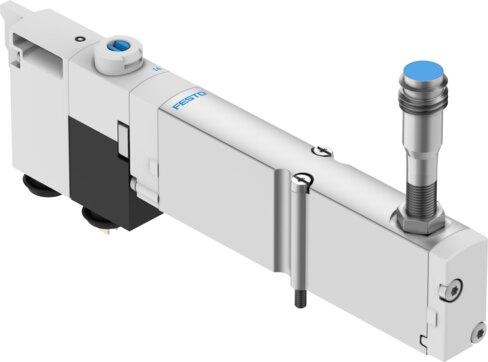

Reference imageConfirm configuration by manufacturer part number.
Festo
8186953
Solenoid valve VMPA1-M1H-MSC-PI
The Festo 8186953 is an electrical 10 mm industrial component featuring a 5/2-way monostable piston gate valve design with a soft sealing principle and positive overlap lap. Operating on 24V DC with an operating pressure range of -0.09 MPa to 0.8 MPa and a normal nominal flow rate of 190 l/min, this piloted unit includes a mechanical spring reset, reversible flow direction, and both detenting and non-detenting manual override. It provides IP65 protection in the mounted state as per IEC 60529, c UL us recognition, integrated signal status display, and switching position indication via a built-in sensor. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8186953
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8186953.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Valve size
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 190 l/min
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...0.8 MPa | -0.9 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | In mounted state | As per IEC 60529
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Flow direction
- Reversible
- Switching element function
- NC contact
- Lap
- Positive overlap
- Switching position indication
- via built-in sensor
- Signal status display
- Yes
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- Yes
- Standard nominal ow rate with QS-6
- 360 l/min
- Max. switching frequency
- 2 Hz
- Switching time off
- 27 ms
- On switching time
- 10 ms
- Max. positive test pulse with 0 signal
- 400 µs
- Max. negative test pulse on 1 signal
- 200 µs
