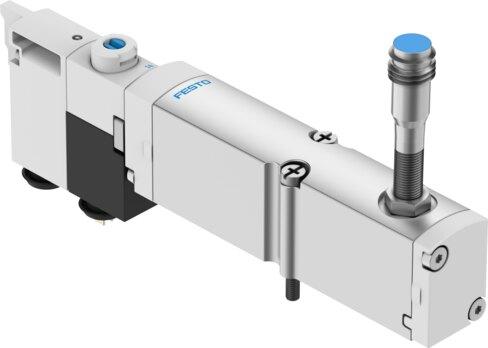

Reference imageConfirm configuration by manufacturer part number.
Festo
8186954
Solenoid valve VMPA14-M1H-MSC-PI
The Festo 8186954 is an electrically actuated 5/2-way monostable industrial component featuring a 14 mm valve size, piston gate valve structural design, and soft sealing principle with positive overlap lap. It delivers a normal nominal flow rate of 550 l/min to 670 l/min at an operating pressure range of -0.09 MPa to 0.8 MPa and a pilot pressure of 0.3 MPa to 0.8 MPa, utilizing a 24V DC operating voltage with mechanical spring reset and piloted control. Protected to IP65 according to IEC 60529 in mounted state, this c UL us-recognized (OL) unit supports any mounting position, reversible flow direction, detenting or non-detenting manual override, NC contact switching element function, and switching position indication via a built-in sensor with a signal status display. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8186954
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8186954.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Valve size
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 550 l/min...670 l/min
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...0.8 MPa | -0.9 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | In mounted state | As per IEC 60529
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Flow direction
- Reversible
- Switching element function
- NC contact
- Lap
- Positive overlap
- Switching position indication
- via built-in sensor
- Signal status display
- Yes
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- Yes
- Note on standard nominal ow rate
- MPA-L: 670 l/min | MPA-S: 550 l/min
- Standard nominal ow rate with QS-8
- 550 l/min...670 l/min
- Max. switching frequency
- 2 Hz
- Switching time off
- 41 ms
- On switching time
- 13 ms
- Max. positive test pulse with 0 signal
- 400 µs
