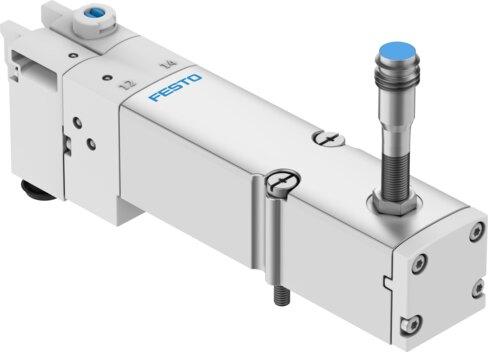

Reference imageConfirm configuration by manufacturer part number.
Festo
8186955
Solenoid valve VMPA2-M1H-MSC-PI
The Festo part number 8186955 is an electrical 5/2-way monostable industrial component utilizing a piston gate valve structural design with a soft sealing principle and positive overlap. It delivers a normal nominal flow rate ranging from 670 l/min to 840 l/min at an operating pressure of -0.09 MPa to 0.8 MPa, functioning on a 24V DC operating voltage with IP65 degree of protection when mounted. Featuring piloted control, mechanical spring reset, reversible flow direction, and both detenting and non-detenting manual override, the unit includes a built-in sensor for switching position indication and signal status display. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8186955
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8186955.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Valve size
- 20 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 670 l/min...840 l/min
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...0.8 MPa | -0.9 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | In mounted state | As per IEC 60529
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Flow direction
- Reversible
- Switching element function
- NC contact
- Lap
- Positive overlap
- Switching position indication
- via built-in sensor
- Signal status display
- Yes
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- Yes
- Note on standard nominal ow rate
- MPA-L: 840 l/min | MPA-S: 670 l/min
- Standard nominal ow rate with QS-8
- 670 l/min
- Standard nominal ow rate with QS-10
- 840 l/min
- Max. switching frequency
- 2 Hz
- Switching time off
- 36 ms
- On switching time
- 8 ms
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8186955. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
