Festo
8187050

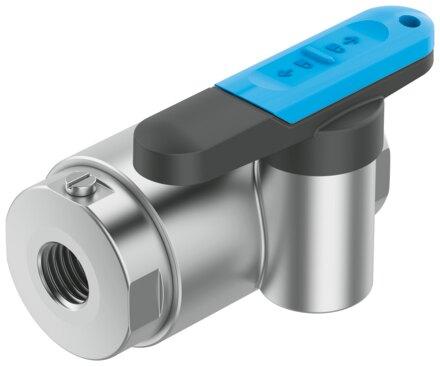

Pinch valve VZQH-2H-6-GG-V4V4EPM-6
The Festo 8187050 is a manually actuated industrial pinch valve featuring a soft sealing principle and a 2/2-way, closed, monostable valve function with direct control. Designed for in-line installation in any mounting position with a G1/4 fitting connection, this component accommodates a nominal width DN of 6 and a reversible flow direction for compressed air and water media up to 4000 mm²/s viscosity. It operates within a medium pressure range of 0 bar to 6 bar, a medium temperature range of -5 °C to 100 °C, and an ambient temperature range of -5 °C to 60 °C, utilizing a mechanical spring reset method alongside a nominal fitting pressure PN of 10, a burst pressure of 16 bar, and a flow rate Kv of 0.7 m³/h. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8187050
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8187050.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Pinch valve
- Actuation type
- Manual
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- G1/4
- Nominal width DN
- 6
- Valve function
- 2/2-way, closed, monostable
- Flow direction
- Reversible
- Medium pressure
- 0 MPa...0.6 MPa | 0 bar...6 bar | 0 psi...87 psi
- Nominal pressure of tting PN
- 10
- Burst pressure
- 1.6 MPa | 16 bar | 232 psi
- Reset method
- Mechanical spring
- Type of control
- directly
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:1] | Water
- Max. viscosity
- 4000 mm²/s
- Temperature of medium
- -5 °C...100 °C
- Ambient temperature
- -5 °C...60 °C
- Storage temperature
- 6 °C...8 °C
- Flow rate Kv
- 0.7 m³/h
- On switching time
- 1000 ms
- Switching time off
- 1000 ms
- Note on materials
- RoHS compliant
