Festo
8187059

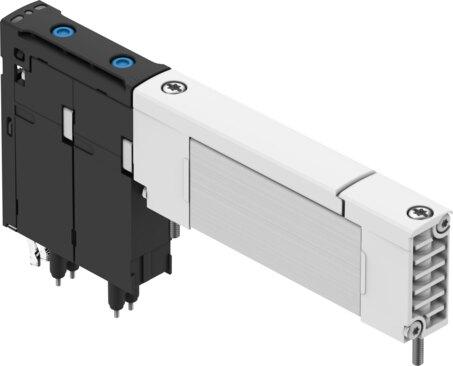

Solenoid valve VUVX-BK10-B52-ZH-F-1T1L
The Festo 8187059 is a 10 mm electrical industrial component featuring a 5/2-way bistable valve function with piloted control and a piston slide structural design with a soft sealing principle. It delivers a standardized nominal flow rate of 690 l/min at an operating voltage of 24V DC and an operating pressure range of -0.9 bar to 7 bar. Built with an IP65 degree of protection, this unit includes an adjustable exhaust air function, a signal status display, and a non-detenting manual override. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8187059
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8187059.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Valve size
- 10 mm
- Nominal ow rate standardized according to ISO 8778
- 690 l/min
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...0.7 MPa | -0.9 bar...7 bar
- Structural design
- Piston slide with sealing ring
- Degree of protection
- IP65
- Width
- 10.35 mm
- Nominal width
- 4.2 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible with restrictions
- Lap
- Negative overlap
- Signal status display
- Yes
- Pilot pressure MPa
- 0.15 MPa...0.7 MPa
- Pilot pressure
- 1.5 bar...7 bar
- Suitability for vacuum
- Yes
- b-value
- 0.36
- C value
- 2.76 l/sbar
- Nominal ow rate standardized according to ISO 8778 exhaust 2-3
- 700 l/min
- Max. switching frequency
- 5 Hz
- Changeover time
- 9 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1400 µs
- Max. negative test pulse on 1 signal
- 800 µs
- Coil characteristics
- 24 V DC: 0.35 W
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8187059. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
