Festo
8187060

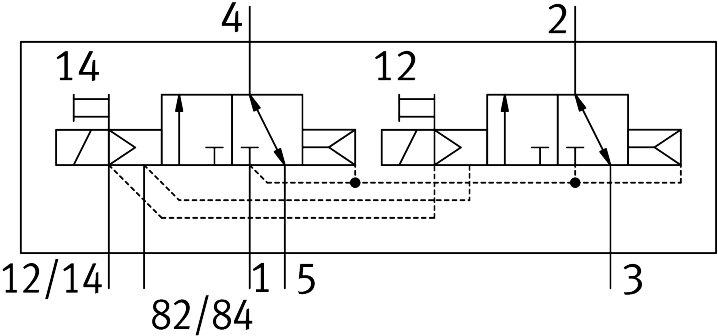

Solenoid valve VUVX-BK10-T32C-A1ZH-F-1T1L
The Festo 8187060 is an electrical industrial component featuring a 2x3/2 closed, monostable valve function within a 10 mm valve size and a width of 10.35 mm. Engineered with a piston slide with sealing ring and soft sealing principle, this piloted device provides a standardized nominal flow rate of 600 l/min at an operating pressure range of 0.15 MPa to 0.7 MPa and a 24V DC operating voltage. Additional technical characteristics include an IP65 degree of protection, pneumatic spring reset method, external pilot air supply port, adjustable exhaust air function, and a non-detenting manual override. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8187060
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8187060.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 closed, monostable
- Actuation type
- Electrical
- Valve size
- 10 mm
- Nominal ow rate standardized according to ISO 8778
- 600 l/min
- Operating voltage
- 24V DC
- Operating pressure
- 0.15 MPa...0.7 MPa | 1.5 bar...7 bar
- Structural design
- Piston slide with sealing ring
- Reset method
- Pneumatic spring
- Degree of protection
- IP65
- Width
- 10.35 mm
- Nominal width
- 3.8 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Signal status display
- Yes
- Pilot pressure MPa
- 0.15 MPa...0.7 MPa
- Pilot pressure
- 1.5 bar...7 bar
- Suitability for vacuum
- No
- b-value
- 0.34
- C value
- 2.3 l/sbar
- Nominal ow rate standardized according to ISO 8778 exhaust 2-3
- 650 l/min
- Max. switching frequency
- 5 Hz
- Switching time off
- 22 ms
- On switching time
- 12 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1400 µs
