Festo
8187061

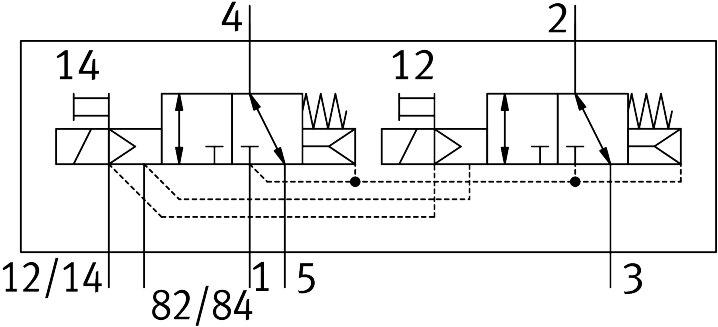

Solenoid valve VUVX-BK10-T32C-MZH-F-1T1L
The Festo part number 8187061 is an electrical industrial component featuring a 2x3/2 closed, monostable valve function and a 10 mm valve size with a nominal width of 3.8 mm. Utilizing a piloted type of control with external pilot air supply and a piston slide structural design with a soft sealing principle, it delivers a standardized nominal flow rate of 600 l/min across an operating pressure range of 0 MPa to 0.7 MPa at 24V DC. Additional attributes include IP65 protection, adjustable exhaust air, mechanical spring reset, negative overlap lap, reversible flow direction, non-detenting manual override, and a signal status display in an any-position mounting configuration. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this unit.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8187061
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8187061.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 closed, monostable
- Actuation type
- Electrical
- Valve size
- 10 mm
- Nominal ow rate standardized according to ISO 8778
- 600 l/min
- Operating voltage
- 24V DC
- Operating pressure
- 0 MPa...0.7 MPa | 0 bar...7 bar
- Structural design
- Piston slide with sealing ring
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- Width
- 10.35 mm
- Nominal width
- 3.8 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Negative overlap
- Signal status display
- Yes
- Pilot pressure MPa
- 0.2 MPa...0.7 MPa
- Pilot pressure
- 2 bar...7 bar
- Suitability for vacuum
- No
- b-value
- 0.34
- C value
- 2.3 l/sbar
- Nominal ow rate standardized according to ISO 8778 exhaust 2-3
- 650 l/min
- Max. switching frequency
- 3 Hz
- Switching time off
- 17 ms
- On switching time
- 14 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1400 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8187061. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
