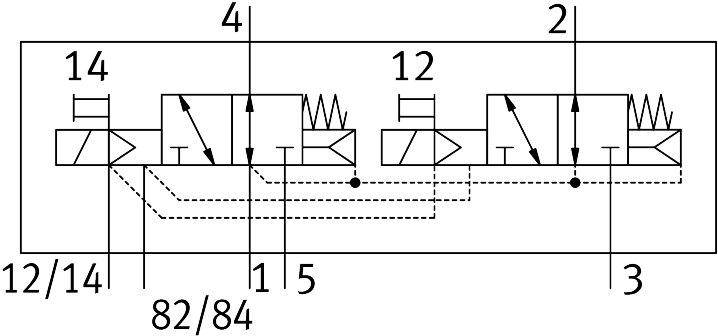

Reference imageConfirm configuration by manufacturer part number.
Festo
8187063
Solenoid valve VUVX-BK10-T32U-MZH-F-1T1L
The Festo 8187063 is an electrical industrial component featuring a 2x3/2 open monostable valve function, a 10 mm valve size, and a 10.35 mm width with a 3.6 mm nominal width. This piloted valve utilizes a piston slide with a soft sealing ring, a negative overlap lap, and an external pilot air supply port to deliver a standardized nominal flow rate of 555 l/min according to ISO 8778 across an operating pressure range of 0 MPa to 0.7 MPa (0 bar to 7 bar). Operating at 24V DC with IP65 protection, it includes a mechanical spring reset method, an adjustable exhaust air function, a non-detenting manual override, reversible flow direction, and a signal status display for any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8187063
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8187063.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 open monostable
- Actuation type
- Electrical
- Valve size
- 10 mm
- Nominal ow rate standardized according to ISO 8778
- 555 l/min
- Operating voltage
- 24V DC
- Operating pressure
- 0 MPa...0.7 MPa | 0 bar...7 bar
- Structural design
- Piston slide with sealing ring
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- Width
- 10.35 mm
- Nominal width
- 3.6 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Negative overlap
- Signal status display
- Yes
- Pilot pressure MPa
- 0.2 MPa...0.7 MPa
- Pilot pressure
- 2 bar...7 bar
- Suitability for vacuum
- No
- b-value
- 0.41
- C value
- 2.02 l/sbar
- Nominal ow rate standardized according to ISO 8778 exhaust 2-3
- 545 l/min
- Max. switching frequency
- 3 Hz
- Switching time off
- 17 ms
- On switching time
- 14 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1400 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8187063. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
